Product Description
YY3568 Open-Source Developer Kit Rockchip RK3568 Soc Support Android11.0, Debian10.0 and OpenHarmony OS
Support dual-screen different display output and 4K resolution,lower-cost design in the fields of multi-screen digital signage, an indeal alternative of Raspberry PiOnboard PCIE3.0 and SATA interface, support M.2 solid-state hard disk, SATA hard disk, expandable large-capacityThe onboard 5 serial ports can greatly reduce the communication cost. 2-channel of IIC, which can connect multiple IIC devices. 1 channel CAN, which can meet the needs of the automotive electronics fieldWith SO-DIMM system-on-modules (SoM) design, engineer could make their own baseboard, which can be directly applied to various intelligent project to accelerate the product development process.Carrier board/base board reference design and complete technical documents are provided, so users can efficiently proceed secondary development to quickly create independent and controllable products.Competitive offering for bulk order and long terms of Supply by 6 years

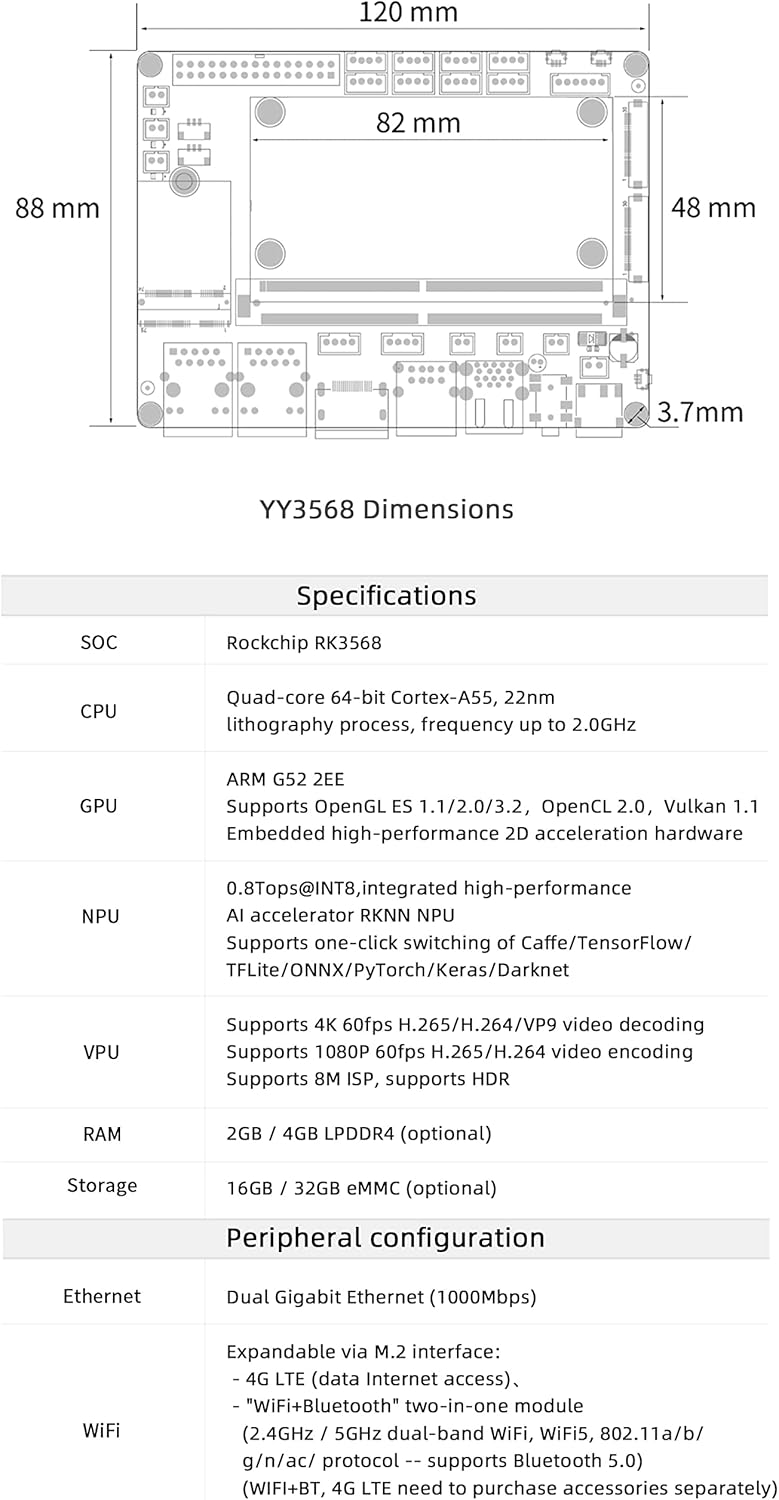

Layout and Interface
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.5 out of 5 stars
2
2.0 out of 5 stars
2
5.0 out of 5 stars
1
4.0 out of 5 stars
3
—
—
Price
$110.00$110.00 $72.99$72.99 $136.00$136.00 $29.99$29.99 $26.99$26.99 $49.90$49.90
RAM
2GB 4GB 4GB
Storage
16GB 32GB 32GB
Soc
RK3568 RK3568 RK3568
Wifi
Dual Band M.2 RTL8822CE Wifi5 Module+BT5.0
NPU
1.0 TOPS 1.0 TOPS 1.0 TOPS
Compatible with YY3568 Dev Board
Yes Yes Yes
Operating System
Android11.0, Debian10.0 and OpenHarmony OS Android11.0, Debian10.0 and OpenHarmony OS Android11.0, Debian10.0 and OpenHarmony OS
OEM/ODM Service
Yes Yes Yes Yes Yes Yes
SDK Available
Yes Yes Yes Yes Yes yes
Kind Reminder: There are various variants. For shipping list, you can refer to the last description of title(content in brackets) or you can contact us by click”WayPonDev” if you are not sure.
[Android and Linux OS Support] YY3568 is compatible with Android 11.0, debian 10.0 and OpenHarmony OS,which gives users options and flexibility when developing their projects
[Customizable Hardware and Software]The core board conbined with carrier board design that help YY3568 developer kit provides users with the ability to customize hardware functions. And we can also offer cross-soc OS porting, BSP kernel trimming, as well as driver development. This allows for a tailored experience and more effective development
[Easy to Use Add-ons and Accessories] WayPonDEV team develop a variety of compatible accessories including 7-inch MIPI Touch Screen, 11.6-inch eDP touch screen, cameras, 4GB LTE module and acrylic case as well as metal shell etc. This helps greatly reduce the cycle from product selection, R&D project establishment, small batch trial production to mass production
[Fast Network Communication] – With onboard dual adaptive Gigabit Ethernet RJ45, 2.4GHz/5GHz dual-band WiFi 5 (WiFi5, 802.11a/b/g/n/ac/ protocol), Bluetooth 5.0, and 4G LTE expansion supported, YY3568 ensures faster-rate, larger-capacity, and lower-latency network communication
[Rich Extensible Interfaces]Equipped with interfaces such as CAN, M.2 PCIE3.0, USB3.0, I2C, SPDIF, UARTx5,UART Debug,4x ADC,30 GPIO, 2x MULTI_PHY, MIPI-DSI,CSI, MIC and 12~19V DC Power Input Jack (5.5/2.1 mm),it can be directly used in various intelligent products to facilitate the completion of products

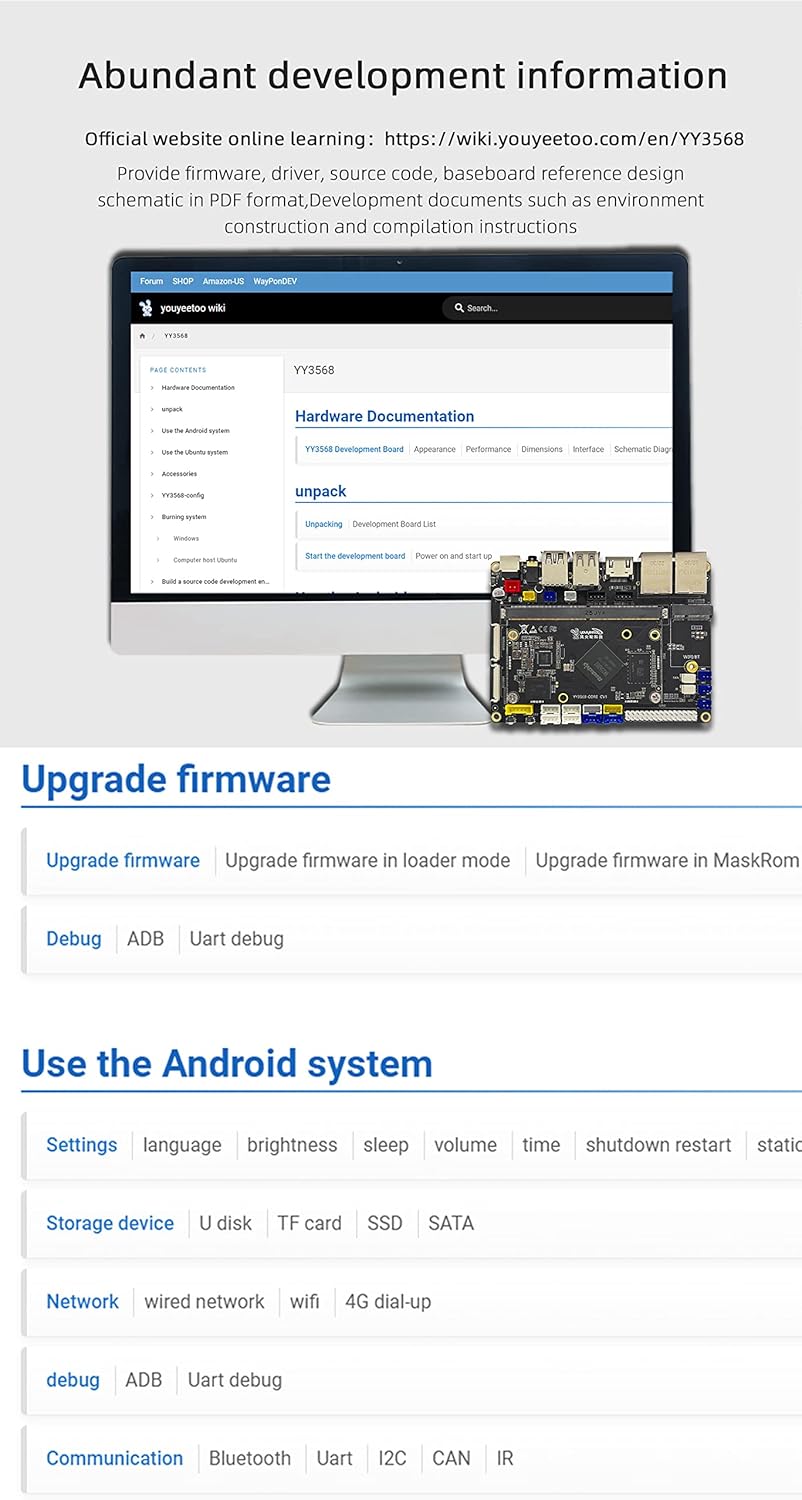

[Wiki] http(s)://wiki.youyeetoo.com/YY3568, you can find SDK, tutorials, tech docs and dev tools are provided, making development simpler and more convenient. Any custimzation requirements or technical support please contact us by wpd#youeetoo.com (#——>@) or post your quesiton on http(s)://forum.youyeetoo.com/
