Product Description

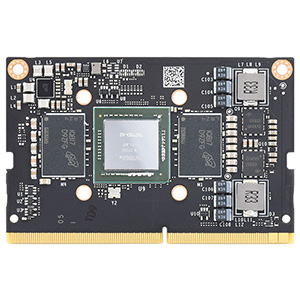

Based On Jetson TX2 NX Module
Jetson TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides 2.5X the performance of Jetson Nano, integrating Pascal architecture with 256 CUDA cores and the AI performance reaches up to 1.33 TFLOPs. This kit includes a TX2 NX Module with onboard 16GB eMMC, does not support Micro SD card.
Dedicated Cooling Fan For Powerful Heat Dissipation
Adopts classic cooling fan appearance, aluminum alloy enclosure, speed up to 5500RPM. Powerful heat dissipation, no worry about the drop in AI performance due to heat dissipation problems.
Compact, Powerful Performance At The Edge
The Jetson TX2 series modules deliver exceptional speed and power efficiency for embedded AI computing devices, delivering 1.33 TFLOPS of AI performance. Equipped with Pascal GPUs, up to 4 GB memory, 51.2 GB/s memory bandwidth, and a variety of standard hardware interfaces.

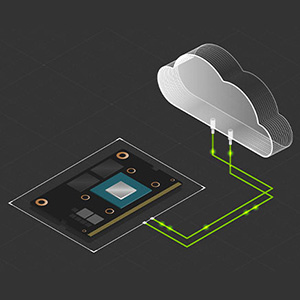

With Cloud-Native Support
Jetson TX2 NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices. Pre-trained AI models from NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.

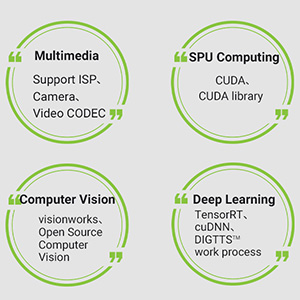

AI Computing Neural Networks SDK
Jetson Development Pack (JetPack) Is An On-Demand All-In-One Package That Bundles And Installs All Development Software Tools For The Jetson Embedded Platform.

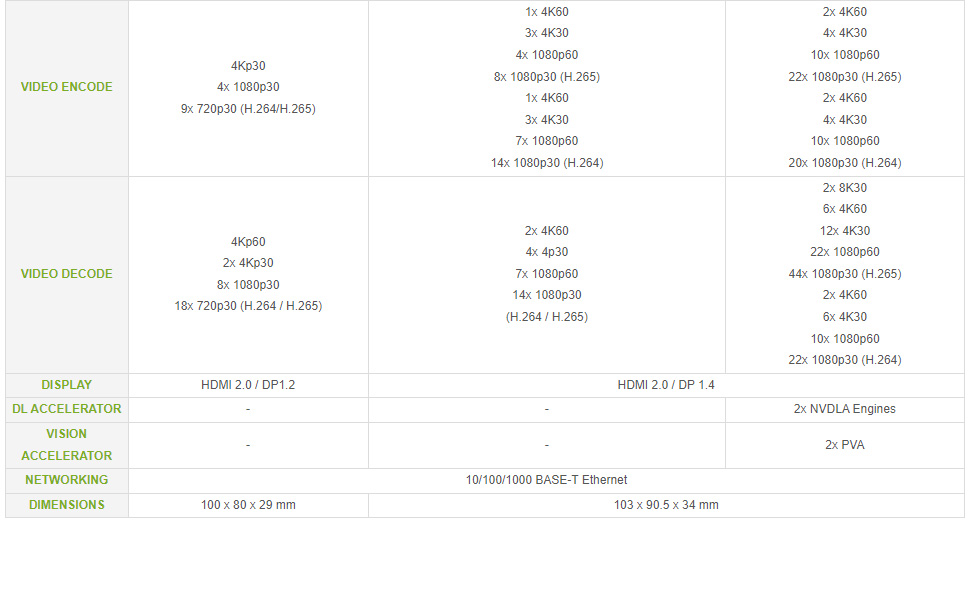

Jetson TX2 NX Module Specification
AI PERFORMANCE 1.33 TFLOPS GPU Pascal Architecture with 256 CUDA cores CPU Dual-core Denver 2 64-bit CPU and Quad-core Arm Cortex-A57 MPCore processor complex MEMORY 4 GB 128 bit LPDDR4 51.2 GB/s STORAGE 16 GB eMMC 5.1 POWER 7.5 W | 15 W PCIE 1×1 + 1×2 PCIe Gen2, total 30 GT/s CSI Up to 5 cameras (up to 12 via virtual channels) 12-Ch MIPI CSI-2 (3×4 or 5×2) D-PHY 1.2 (up to 30 Gbps) VIDEO ENCODE 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) VIDEO DECODE 2x 4K60 | 4x 4p30 | 7x 1080p60 | 14x 1080p30 (H.265 and H.264) DISPLAY 2 Multimode DP 1.2/eDP 1.4/HDMI 2.0 1 x 2 DSI (1.5Gbps/lane) NETWORKING 10/100/1000 BASE-T Ethernet DIMENSIONS 69.6 mm x 45 mm 260-pin SO-DIMM connector
This kit includes a TX2 NX Module with onboard 16GB eMMC, does not support Micro Memory card.
Adopts classic cooling fan appearance, aluminum alloy enclosure, speed up to 5500RPM. Powerful heat dissipation, no worry about the drop in AI performance due to heat dissipation problems.

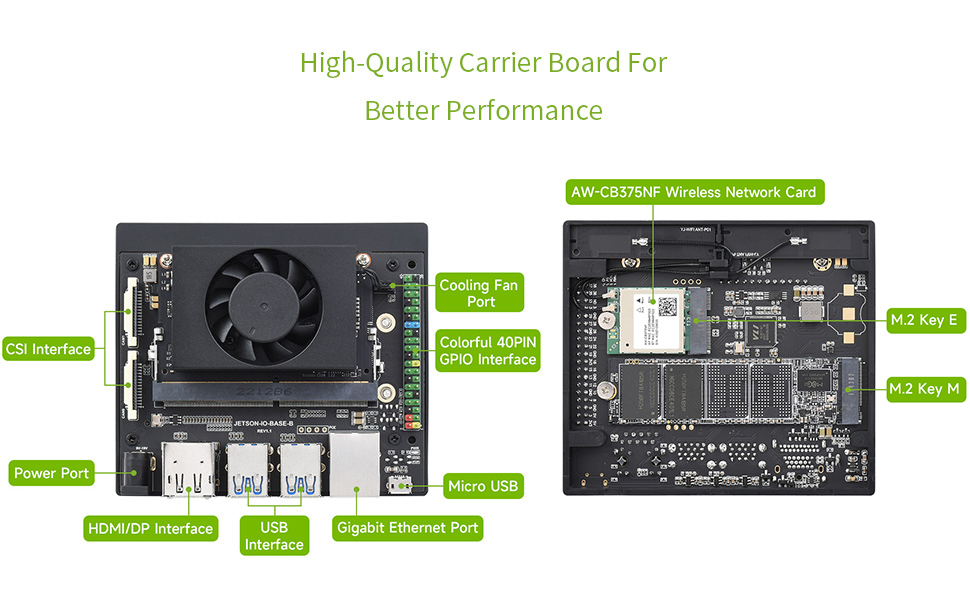

High-quality carrier board to match the strong performance of the TX2 NX Module. Waveshare is widely praised for the board durability and manufacturing quality. We optimize each part of the board with good workmanship and materials.
Jetson TX2 NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices.
Pre-trained AI models from NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.
