-Specification-
Processor：
StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz
IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)
Memory: 8GB LPDDR4 (up to 2800Mbps)
Storage: Onboard TF card slot; Flash
-Video Output-
1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes
1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps
Camera：1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps
-Encoder/Decoder-
Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
Video encoder supports up to 1080p@30fps and multi-stream for H265
JPEG encoder/decoder
-Peripherals-
2 x USB 3.0 ports; 2 x USB 2.0 ports
40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
2x RJ45 Ethernet Connector; Not WIFI
3.5 mm Audio jack (4-pole stereo audio output)
M.2 Connector；eMMC Socket；2 pin fan header
Micro-SD card slot for system boot and data storage
Power Supply：Power 5V DC with PD, up to 30W
Power Connector：USB Type-C port or 40-pin GPIO header
-Dimension-
100mm x 72 mm x 10mm
-Operating Systems-
VisionFive 2 supports mainstream Linux distributions
Debian,Fedora,Ubuntu,openSUSE

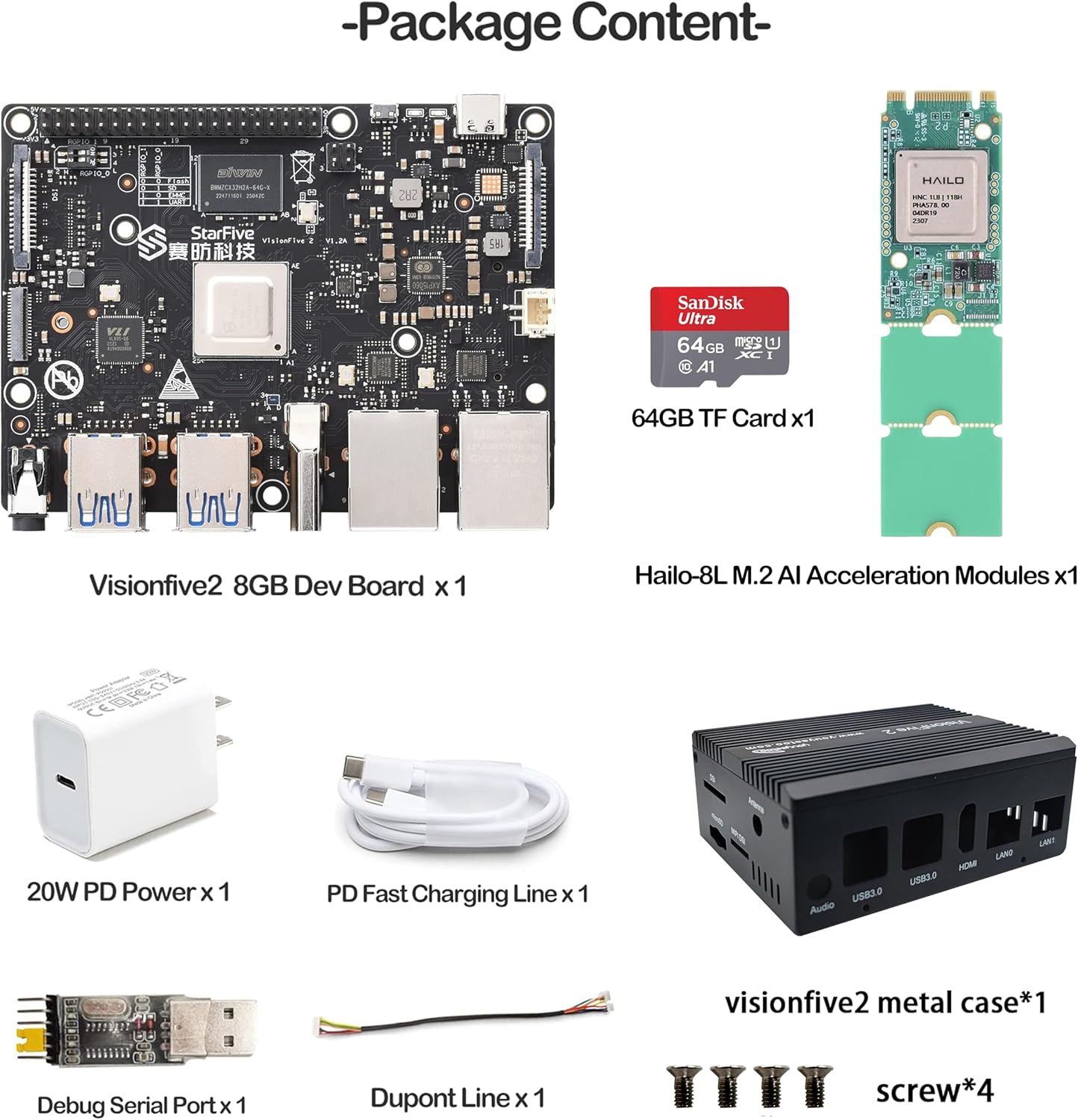

-Package Content-
VisionFive 2 8GB Single Board Computer Kit x1 (Show as shipping list)
[High Performance StarFive JH7110 SoC] VisionFive2 Mini PC Integrated StarFive JH7110 with RISC-V U74 quad-core CPU, with 2MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5GHz. Paired with IMG BXE-4-32 MC1 3D GPU,work frequency up to 600 MHz (400 MHz by default).Suport with Vision DSP, NVDLA engine, and neural network engine for AI acceleration.
[Hailo-8L M.2 AI Acceleration] VisionFive2 Hailo-8L AI Modules Powered by 13Tera-Operations Per Second (TOPS) Hailo-8L AI processor. Robust software suite supports state-of-the-art deep learning models and applications out-of-the-box, using a standard M.2 form factor module, with key B+M and key A+E. Enabling real-time, low latency, and high-efficiency AI inferencing on edge devices.
[Scalable and Future-ready Software ] VisionFive2 Mini PC Hailo-8L AI Acceleration Modules enabling simultaneous processing of multi-streams and multi-models. Software compatibility when migrating to Hailo-8 for more powerful AI. Dimensions: Key B+M: 22×42 mm with breakable extensions to 22×60 mm and 22×80 mm. Key A and E: 22×30 mm.
[Support OpenGL and FFMpeg] VisionFive2 RISC-V linux single board computer Integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2; supports running OpenGL, Vulkan and FFMpeg demos.
[Rich Interface] VisionFive2 risc-v mini pc built with M.2 connector, eMMC socket, Dual Gigabit Network Port and WiFi Slot; 40 Pin GPIO Header, 2x RJ45 Ethernet Connector and Micro-SD card slot; 2 x USB 3.0 ports,2 x USB 2.0 ports,1 x USB Type-C port; TF card slot and Flash etc.
[Multi-Function] VisionFive2 RISC-V AI Single Board Computer as an open-source development board with Powerful Performance, Open Source Application Environment, And Rich Software Ecology, More Possibilities For VisonFive 2, while compatible with Raspberry Pi series boards. Supports Linux,Debian and Fedora image.
[4K Encoder/Decoder] VisionFive2 RISC-V AI development board is a video decoder and encoder, supports up to 4K@60fps; Support multi stream for H264/H265; Video encoder supports up to 1080p@30fps and multi-stream for H265; JPEG encoder/decoder.
