Price: $189.99
(as of Nov 28, 2024 04:26:51 UTC – Details)
-Technical Support-
Software Development Documentation:
Software Development SDK
Please click “WayPonDEV” and ask a question.
Please leave the message “wpd#youyeetoo&com (#—>@,&—>.)” or skype: monica_9122.

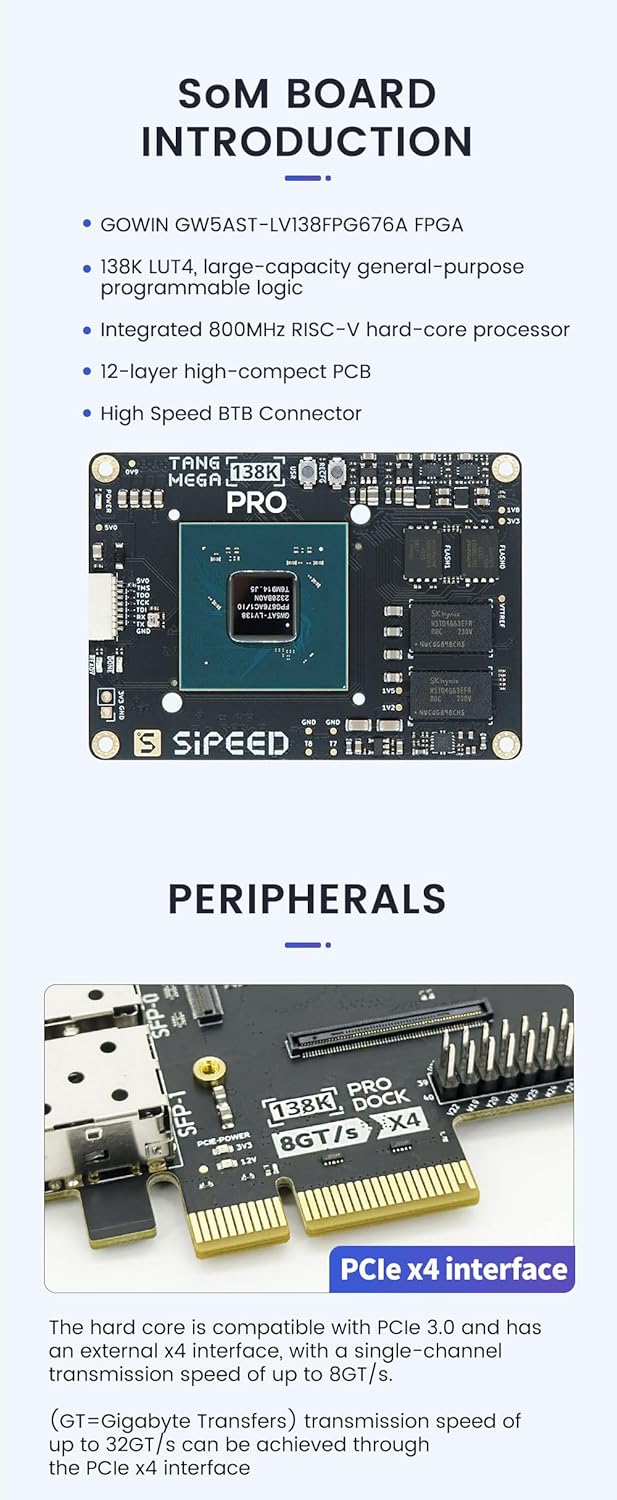

Tang Mega 138K Pro Dock development board kit uses GW5AST FPGA as the main controller chip, the chip has 138240 LUTs and REGs, and a series of resources such as 12 PLLs to meet a variety of functional requirements, integrated 800MHz RISC-V hardcore processor, and BTB connectors to connect with the backplane.
The Tang Mega 138K Pro Dock single board computer is equipped with Gigabit Ethernet, SFP+ and PCle interfaces, which are suitable for learning and verifying high speed FPGA communication. It is also equipped with multiple camera interfaces and display interfaces, which can be easily used for image acquisition and display.
Tang Mega 138K Pro Dock single board computer on board rich peripheral interfaces, hard-core compatible with PCle 3.0 external lead x4 interface, a single transmission rate of up to 8GT / s (GT = Gigabyte Transfers), through the PCle x4 interface can realize up to 32GT / s high-speed data transfer. The core board measures 50mm x 70mm.

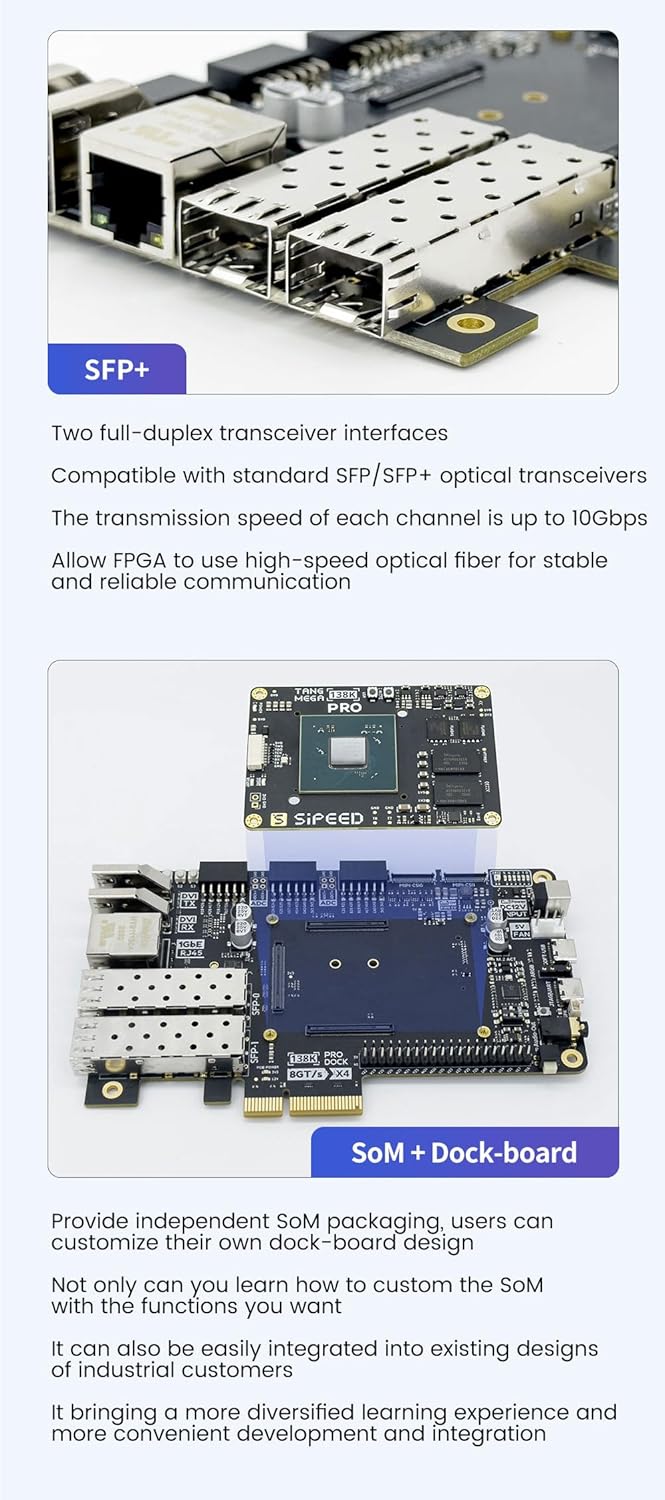

Tang Mega 138K Pro Dock development board can be connected to the standard SFP/SFP + fiber optic transceivers, each way the transmission rate of up to 10Gbps, so that FPGAs can also use high-speed fiber optic communication for stable and reliable, suitable for high-speed communications, protocol conversion, high-performance computing and other occasions.
Provide core board package, customers can customize the design of the base board, not only can learn to customize the core board features, but also to facilitate industrial customers to directly embed the existing program to bring more diverse learning experience, more convenient development and integration.
[Wiki] Datesheet SDK Document download please click “WayPonDEV” store and ask the question. All after-sales questions, please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”.
