The MAIX Dock development board is a member of the MAIX product line of SiPEED. It is an AIOT development board based on the intelligent computing chip K210 (RISC-V architecture 64-bit dual core). Development board parameters : 1. Onboard resources: button *2 RGB light*1 MEMS Microphone*1 USB to UART 128Mbit Flash*1 2. Onboard interface: USB Type-C interface 24PIN DVP camera interface 24PIN LCD interface MicroSD card slot Audio interface (support external 2x3W speakers) All IO header pins lead out 3. Size: 52.3*37.3mm 4. Power supply voltage: 5.0V @ 300mA (power supply current needs to be greater than 300mA) 5. Working temperature: -30°℃ ~85°℃ Software Development 1. Chip operating system: FreeRTOS, RT-Thread, etc. 2. Development environment: MaixPy IDE, PlatformlO IDE, for Arduino IDE etc. 3. Programming languages: C, C++, MicroPython -In the Box- 1x Maix M1W Dock Board 2x 20 Pin Header 1x 200W pixel OV2640 Camera Module 1x Type C Adapter 1x LCD Module -Tech-support- Tech-Team: monica@smartfire.cn Skype: monica_9122

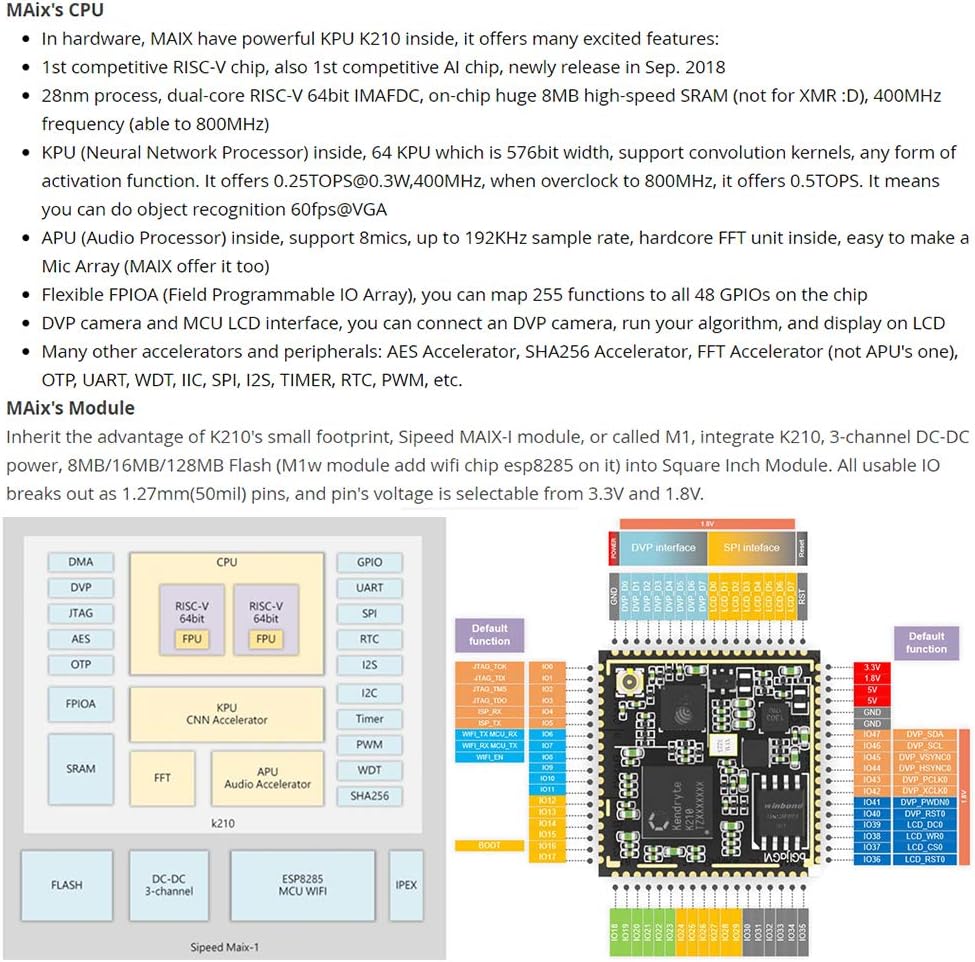

High performance and Low Power: Maix M1 Dock is based on the intelligent computing chip K210 (RISC-V Dual Core 64bit, with FPU，400Mhz-500Mhz, Neural network processor ) for AloT edge computing solution
EASY to USE ROBOT VISION: It’s a development kit to simplify AIOT application programming, so that developers can use simple Micropython syntax to development, easy to apply to machine vision and machine hearing, such as face recognition identification, object recognition, microphone array applications
Computing power Up to 1 TOPS: Support TensorFlow/Keras/Darknet/Caffe Mainstream framework
Application: Attendance and access control, automatic driving, smart robots, Internet of Things, passenger flow statistics, smart wear, smart home,predictive maintenance, anomaly detection, machine vision, robotics, voice recognition
