Price: $22.99
(as of Dec 06, 2024 11:59:26 UTC – Details)
-Specification-
MainChip:Three RISC-V CPUs：
· RV64GCV 480MHz
· RV32GCP 320MHz
· RV32EMC 160MHz)
AI NN general purpose hardware accelerator：
· BLAI-100, used for video/audio detection/identification，100GOPS hashrate
768KB SRAM + 64MB UHS PSRAM
Encode and Decode：MJPEG and H264(Baseline/Main)；1920×1080@30fps + 640×480@30fps
Camera interface ：DVP and MIPI-CSI
Display interface：SPI、DBI、DPI(RGB)
Wireless Support：Wi-Fi 802.11 b/g/n；Bluetooth 5.x Dual-mode(BT+BLE)；Wi-Fi / BT co-existence
USB：USB 2.0 HS OTG
Onboard components:
USB to UART debugger (Used for uart communication and burn firmware)
screen interface (Optional 1.69-inch 240×280 capacitor touch screen)
MIPI camera interface (Optional 2M solution camera)
1 analog microphone、1 LED、1 TF card slot
OS Support: Full support for FreeRTOS; Basic support for Linux
Developments: C SDK；MaixHAL C；pikascript python
Burn Firmware:Burn from uart；Virtual disk drag-and-drop burn
AI Framework:
· Support BLAI accelerated inference engine with native SDK
· Suppory universal TinyMaix inference
AI model store：Support Face detection and recognition, posture detection and gesture detection, etc.
-Package Content-

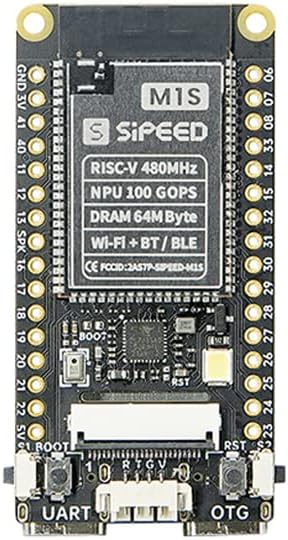

1x Sipeed Maix M1s Dock Development Board
1x MIPI Camera
2x Pin header
-Technical Support-
- Please click “WayPonDEV” and ask a question or monica#smartfire.cn (f——>@) skype: monica_9122.
- Please leave the message in our forum by forum.youyeetoo.com/.
[BL808 AIOT Module ] Sipeed M1s Dock module is an AIOT module based on BL808 RISC-V 480Mhz CPU + NPU BLAI-100 GOPS, it contains 3 cores inside, Built-in 768KB SRAM 64MB UHS PSRAM 16MB eMMC, audio encoder and decoder, video encoder and decoder and AI hardware accelerator (BLAI-100), suitable for a variety of high performance and low power applications.
[Minimal Design] Sipeed M1s Dock is a development board designed based on Sipeed M1s module，routes interface like MIPI CSI、SPI LCD and FPC connector, to get rid of worries of connecting cable. Designed with the most minimal design, for customers to evaluate the module, or hobbyists to play directly, etc.
[WIFI/BT/BLE Wireless Unit] Support 2.4G WIFI/BT/BLE/Zigbee wireless interconnected unit; Onboard USB to UART debugger, screen interface, MIPI camera interface; Onboard 1 analog microphone、1 LED、1 TF card slot Route USB-OTG to USB Type-C port; support IPEX-I and PCB antenna.
[OS Support] Full support for FreeRTOS, Basic support for Linux; Development method: Native C SDK, MaixHAL C module, pikascript python script.
[AI Reasoning Framework] Support the BLAI accelerated inference engine of the native SDK, and support the general TinyMaix inference engine; Support face detection, recognition, posture detection, gesture detection, etc.
[Wiki] “https://dl.sipeed.com/shareURL/MAIX/M1s/M1s_Dock/1_Specification”; Any after-sales problems, please contact us by email: monica#smartfire.cn (#—–>@).Also can click WayPonDEV store and ask a question or leave the message in our forum by “forum.youyeetoo .com/”.
