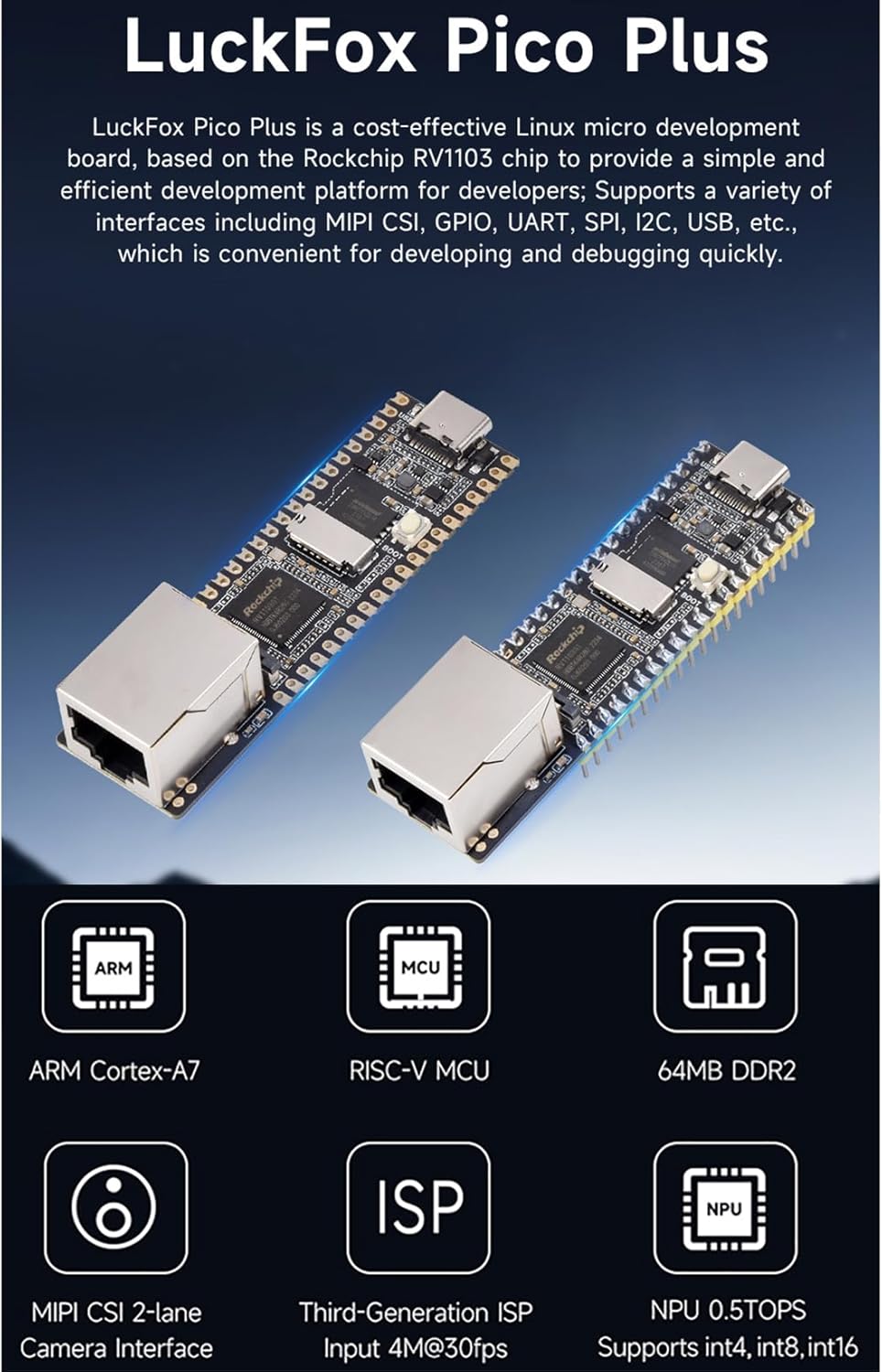

Luck-fox Pico Plus (without header, 64MB DDR2 ) is a cost-effective Linux micro development board, based on the Rock-chip RV1103 chip to provide a simple and efficient development platform for the developers. Supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc. which is convenient for developing and debugging quickly
Specifications
Processor: Cortex A7@1.2GHz + RISC-V
NPU: 0.5TOPS, supports int4, int8 and int16
ISP: Input 4M @30fps (Max)
Memory: 64MB DDR2
USB: USB 2.0 Host/Device
Camera: MIPI CSI 2-lane
GPIO: 25 × GPIO pins
Ethernet port: 10/100M Ethernet controller and embedded PHY
Default Storage: SPI NAND FLASH (128MB)
Features
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition “in one second”
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY
Provide Online Development Resources /User Manual: bit.ly/3RfJufB
Package Content
Luckfox Pico Plus x1
Luck-fox Pico Plus (without header, 64MB DDR2 ) is a cost-effective Linux micro development board, based on the Rock-chip RV1103 chip to provide a simple and efficient development platform for the developers. Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc. which is convenient for developing and debugging quickly
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition “in one second”
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths. Integrated with built-in POR, audio codec and MAC PHY
