Product Description
Highly integrated and powerful performance, Integrates CPU, NPU, ISP and other processors
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPUBuilt-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage spaceBuilt-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition “in one second”Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidthsIntegrated with built-in POR, audio codec and MAC PHY
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
—
4.8 out of 5 stars
8
4.3 out of 5 stars
12
4.3 out of 5 stars
27
4.3 out of 5 stars
27
4.5 out of 5 stars
4
Price
$12.47$12.47 $15.35$15.35 $17.27$17.27 $16.31$16.31 $22.07$22.07 $30.71$30.71
Main Chip
RV1103G1 RV1103G1 RV1103G1 RV1106G2 RV1106G3 RV1106G3
Memory
64MB 64MB 64MB 128MB 256MB 256MB
NPU
0.5TOPS, supports int4, int8 and int16 0.5TOPS, supports int4, int8 and int16 0.5TOPS, supports int4, int8 and int16 0.5TOPS, supports int4, int8 and int16 1TOPS, supports int4, int8 and int16 1TOPS, supports int4, int8 and int16
ISP
Input 4M @30fps (Max) Input 4M @30fps (Max) Input 4M @30fps (Max) Input 5M @30fps (Max) Input 5M @30fps (Max) Input 5M @30fps (Max)
Default Storage
TF card (Not included) SPI NAND FLASH (128MB) SPI NAND FLASH (128MB) SPI NAND FLASH (256MB) SPI NAND FLASH (256MB) EMMC(8GB)
Features
Onboard Type-C port, MIPI CSI Interface, GPIO, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, R TC batte-ry header, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, R TC batte-ry header, etc. Onboard W-i-F-i, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC batte-ry header, etc.

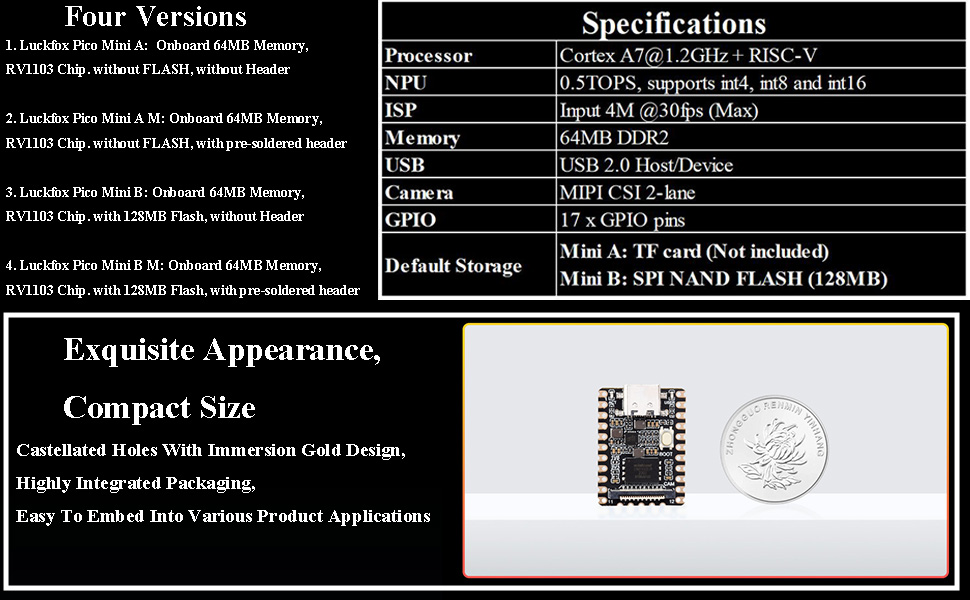

Luck-fox Pico Mini B M (with 128MB Flash, with Pre-Soldered Header) is a cost-effective Linux micro development board, based on the Rock-chip RV1103 chip to provide a simple and efficient development platform for the developers

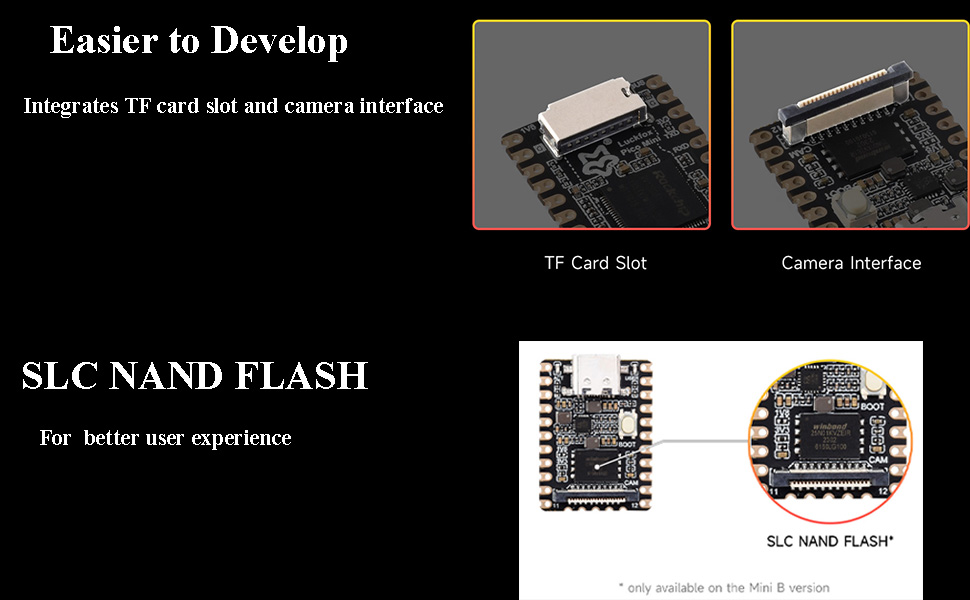

Supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc. which is convenient for developing and debugging quickly
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU. Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition “in one second”
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths. Integrated with built-in POR, audio codec and MAC PHY
