Price: $758.00
(as of Dec 18, 2024 22:57:38 UTC – Details)
Product Description
Jetson Orin Nano RAM 4GB/8GB Developer Kit
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Develop AI-Powered Robots, Smart Vision Systems, and More with N-VI-DIA Jetson Orin Nano Developer Kit
The N-VI-DIA Jetson Orin Nano Developer Kit sets a new standard for creating entry-level AI-powered robots, smart drones, and intelligent vision systems, as N-VI-DIA announced at N-VID-IA GTC 2023. It also simplifies getting started with the N-VI-DIA Jetson Orin Nano series. Compact design, numerous connectors, and up to 40 TOPS of AI performance make this developer kit ideal for transforming your visionary concepts into reality.
The developer kit consists of a Jetson Orin Nano 8 GB module and a reference carrier board that can accommodate all NV-IDI-A Jetson Orin Nano and NVI-DI-A Jetson Orin NX modules, providing an ideal platform for prototyping next-generation edge AI products.
The Jetson Orin Nano 8 GB module features an N-VIDI-A Ampere architecture GPU with 1024 CUDA cores, 32 third-generation Tensor Cores, and a 6-core Arm CPU, enabling multiple concurrent AI application pipelines and high-performance inference. The developer kit carrier board boasts a wide array of connectors, including two MIPI CSI connectors supporting camera modules with up to four lanes, enabling higher resolution and frame rates than before.
The prior-generation Jetson Nano Developer Kit made AI accessible to everyone. The new Jetson Orin Nano Developer Kit raises the bar for entry-level AI development with 80x the performance, enabling developers to run any kind of modern AI models, including transformer and advanced robotics models. Not only does it provide a huge boost in AI performance over the prior-generation Jetson Nano, Jetson Orin Nano also provides 5.4x the CUDA compute, 6.6x the CPU performance, and 50x the performance per watt.
Parameter
Yahboom’s Jetson Orin Nano Package Mouse and Keyboard,
It can be used on Raspberry Pi, Jetson NANO and PC by plugging in the USB interface without installing any driver. Users can enjoy a strong connection without delay. It adopt 2.4G wireless communication technology, range up to 10 meters. Reasonable detail design can bring a better experience to users, such as 6°tilt angle between keyboard and desktop, storage compartment for USB adapter, non-slip rubber pad on the bottom of the mouse, etc.
15.6 inch capacitive touch screen
Screen with 1920*1080 HD resolution. It has a 178°multi-view IPS panel, with dual-channel black magnetic speaker, supports precise ten-point touch. The side of the display is attached with 3.5mm audio output, USB and Type-c interface that supports audio and video transmission. Beyond that, it also possess a HDMI interface, which can be used with Raspberry Pi, Jetson NANO, or can be connected to devices with HDMI output such as game consoles, handles, and PC.
Case Cesigned by Yahboom for Jetson Orin
The Jetson Orin Nano developer kit can use acrylic and aluminum alloy case. Both cases support the installation of fixed dual-channel cameras and dual antennas, and various interface holes are reserved to effectively protect the main board without affecting any of performance.

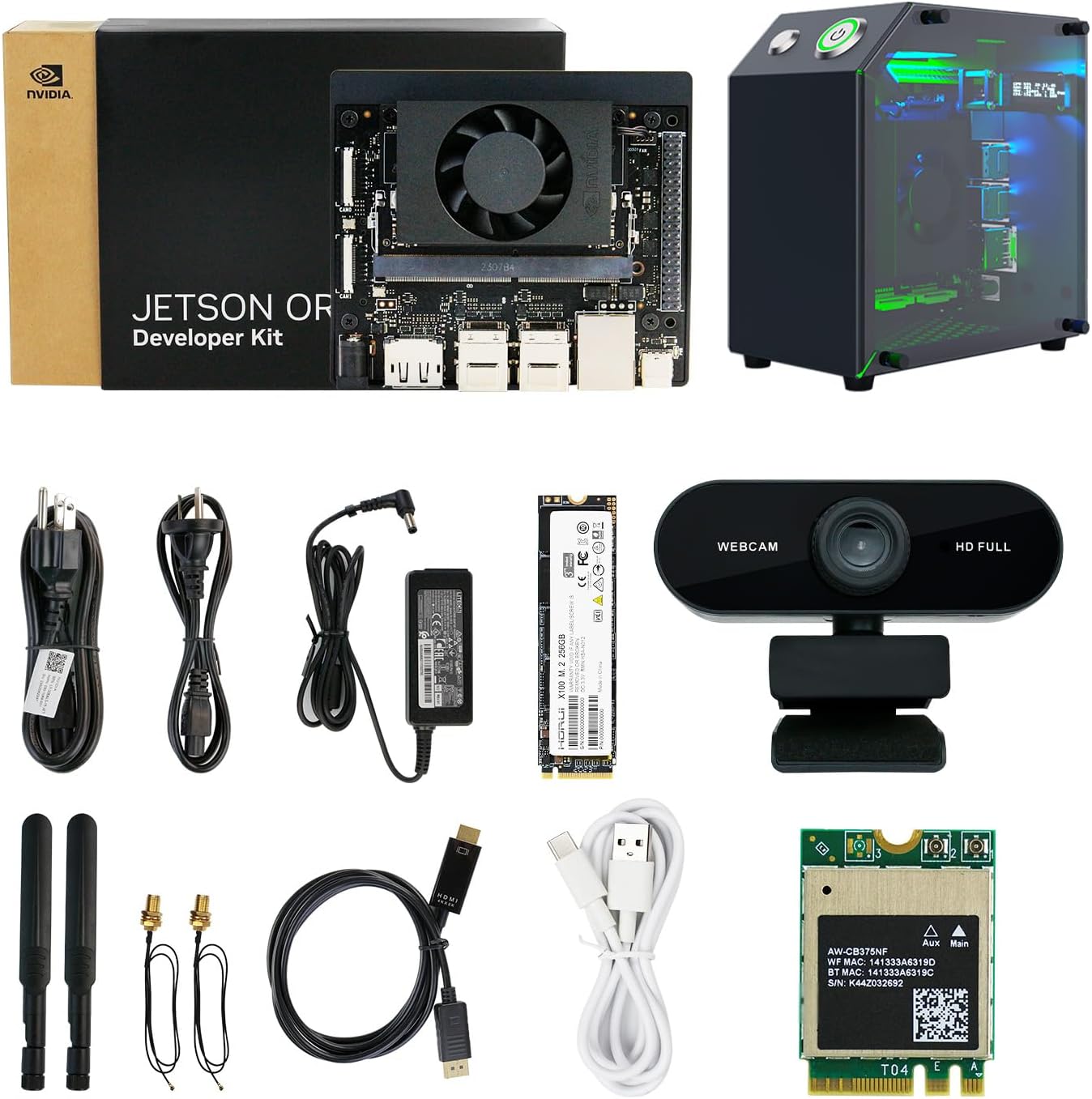

Packing List
Yahboom packaging is different from official packaging
Basis Kit:Jetson Orin Nano SUB development board *1 (core module and carrier board installed，4G or 8G Optional), power adapter *1, antenna *2, wireless network card *1 (installed), 128G solid state *1, SSD radiator *1, DP to HDMI cable *1, Type-C Cable *1, acrylic case *1, Advanced Kit: Basis Kit + IMX219-77°camera *1, camera case *1Mini PC Kit：Basis Kit – acrylic case + Cube Jetson Mini Case*1 + USB camera*1；Ultimate Kit：Mini PC Kit + 15.6in display screen *1+ Wire-less keyboard mouse set*1
Yahboom’s Course Materials
Yahboom’s information has multiple chapters, covering quick start and basic tutorials, including system settings, and further AI vision advanced tutorials and the recently popular ROS tutorials, GPIO hardware control, and some accessories, as well as necessary technical help
Brand New System Image
The JETSON system based on Ubuntu20.04 provides a complete desktop Linux environment with accelerated graphics and supports NV-IDI-A CUDA 11.4.19, TensorRT8.5.2, cuDNN 8.6.0 and other libraries.
1 (New)AI large model data
2 IMX219 77° Camera
3 Jetson Mini Case
4 Compatible Carrier Board
5 Circuit Upgrade
AI high-performance computer
Yahboom Provides A Variety of N-VIDIA Development Kit & Peripheral AI Robot Kit
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars
2
4.5 out of 5 stars
7
5.0 out of 5 stars
1
3.9 out of 5 stars
7
Price
$558.99$558.99
$1,058.99$1,058.99
$209.99$209.99
$169.99$169.99
Computing power
20/40TOPS
70/100TOPS
473GFLOPS
/
CPU
6-core Arm 64-bit CPU
8-core Arm 64-bit CPU
4-core ARM A57 1.43 GHZ
4-core Cortex-A76(ARM v8)
GPU
512 cores/1024 cores
1024 cores
128 cores Maxwell
800 MHz VideoCore Vll
RAM
4GB/8GB
8GB/16GB
4GB
4GB/8GB
Storage
256GB SSD
256GB SSD
16GB EMMC
Micro SD
【NVIDIA Orin Nano core parameters】★AI performance: 40 TOPS ★GPU: 1024-core N-VI-DIA Ampere architecture GPU, 32 Tensor Cores ★CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 ★Memory: Memory 4GB/8GB 128-bit LPDDR5 ★Memory: SD card slot compatible with external NVMe.
【Rich interfaces and high performance】The built-in M.2 Key E wireless network module provides a more stable transmission speed and supports 1000Mbps Ethernet, meeting the needs of various network applications. Adopts PWM adjustable fan, active heat dissipation, and efficient heat dissipation design.
【Official board performance】Adopts a new official board design, adopts more voltage-resistant components, a more stable high-current power supply method, supports 15W power supply mode, supports POE power supply and POE power supply output, and supports one-click conversion. (Note: There is no switch button on the official panel)
【Wide range of applications】Suitable for AI robots, drone data processing, urban road recognition, medical data processing, etc. Yahboom has a strong after-sales technical support team and provides Ubuntu 20.04 system and AI vision and ROS development materials. Provide ROS2 related materials.
