Product Description

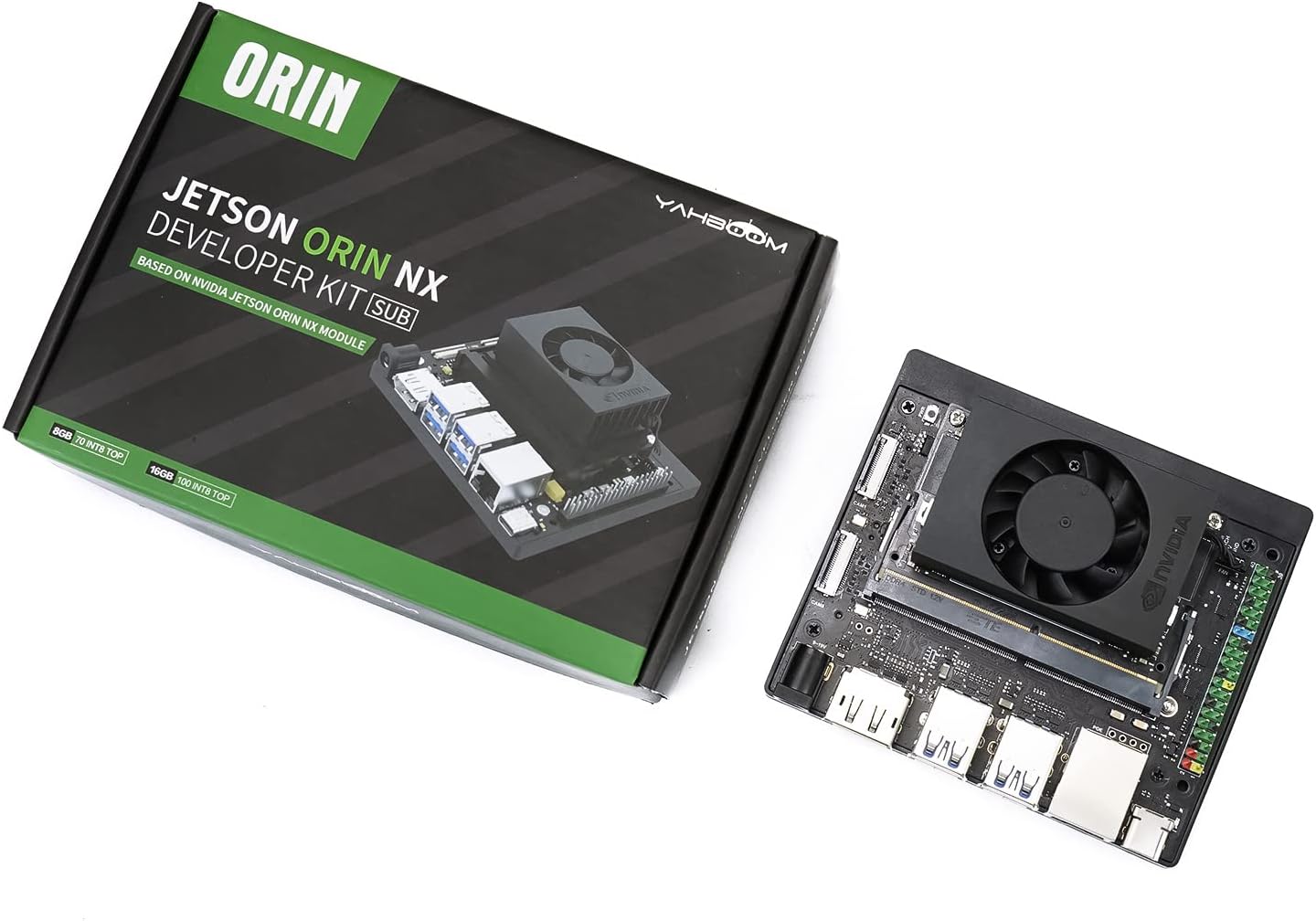

Jetson Orin NX 8GB/16GB RAM Development board kit
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
The Jetson Orin NX SUB developer kit consists of NV-IDIA’s Jetson Orin NX core module and Yahboom Jetson Orin NX carrier board. RAM has 8G/16GB for choice. The computing power can reach 70TOPS and 100TOPS respectively. Yahboom will provide 128GB M.2 SSD that has been written into the system, as well as installed W-i-Fi network card, power supply and other accessories. Users can enjoy Orin NX quickly without complex environment setup steps.
Orin NX provides developers with 3 times the performance of AGX Xavier, 5 times the performance of Xavier NX, and 200 times the performance of nano B01. If Jetson Nano B01 realizes the introduction of AI with one development board per person, then Orin NX is a breakthrough It is a revolutionary AI product with the smallest size, but it can provide up to 100 TOPS of AI performance, and the power can be adjusted between 10W and 25W. It delivers amazing AI performance, brings the world of AI and robotics within everyone’s reach, and new applications that are making a real difference, not just science fiction, across industries.
The latest Orin NX carrier board is compatible with Nv-i-dia’s Jetson Orin NX core module, with reasonable layout and stable performance.Developer kit includes 256GB M.2 SSD solid-state drive, W-i-Fi network card antenna, and power supply.Compared with Jetson Xavier NX, Jetson Orin NX interface resources are optimized and upgraded, the performance is improved by 3~5 times, and the memory read and write speed is doubled.Based on the Ubuntu 20.04 system, Yahboom provides many ROS and AI vision related tutorials and open source codes.
Parameter
Yahboom’s Jetson Orin Nano Package Yahboom’s Course Materials
Yahboom’s information has multiple chapters, covering quick start and basic tutorials, including system settings, and further AI vision advanced tutorials and the recently popular ROS tutorials, GPIO hardware control, and some accessories, as well as necessary technical help
Brand New System Image
The JETSON system based on Ubuntu20.04 provides a complete desktop Linux environment with accelerated graphics and supports NV-IDI-A CUDA 11.4.19, TensorRT8.5.2, cuDNN 8.6.0 and other libraries.
Case Cesigned by Yahboom for Jetson Orin
The Jetson Orin Nano developer kit can use acrylic and aluminum alloy case. Both cases support the installation of fixed dual-channel cameras and dual antennas, and various interface holes are reserved to effectively protect the main board without affecting any of performance.
Packing List
Yahboom’s packaging Solution
Basis Kit:Jetson Orin NX 8/16 GB development board *1 (core module and carrier board installed，4G or 8G Optional), power adapter *1, antenna *2, wireless network card *1 (installed), 128G solid state *1, SSD radiator *1, DP to HDMI cable *1, Type-C Cable *1, acrylic case *1,Advanced Kit: Basis Kit + IMX219-77°camera *1, camera case *1Mini PC Kit：Basis Kit – acrylic case + Cube Jetson Mini Case*1 + USB camera*1；Ultimate Kit：Mini PC Kit + 15.6in display screen *1+ Wire-less keyboard mouse set*1
1 AI LLG model
2 Jetson Nano Case
3 Compatible Carrier Board
4 Circuit Upgrade

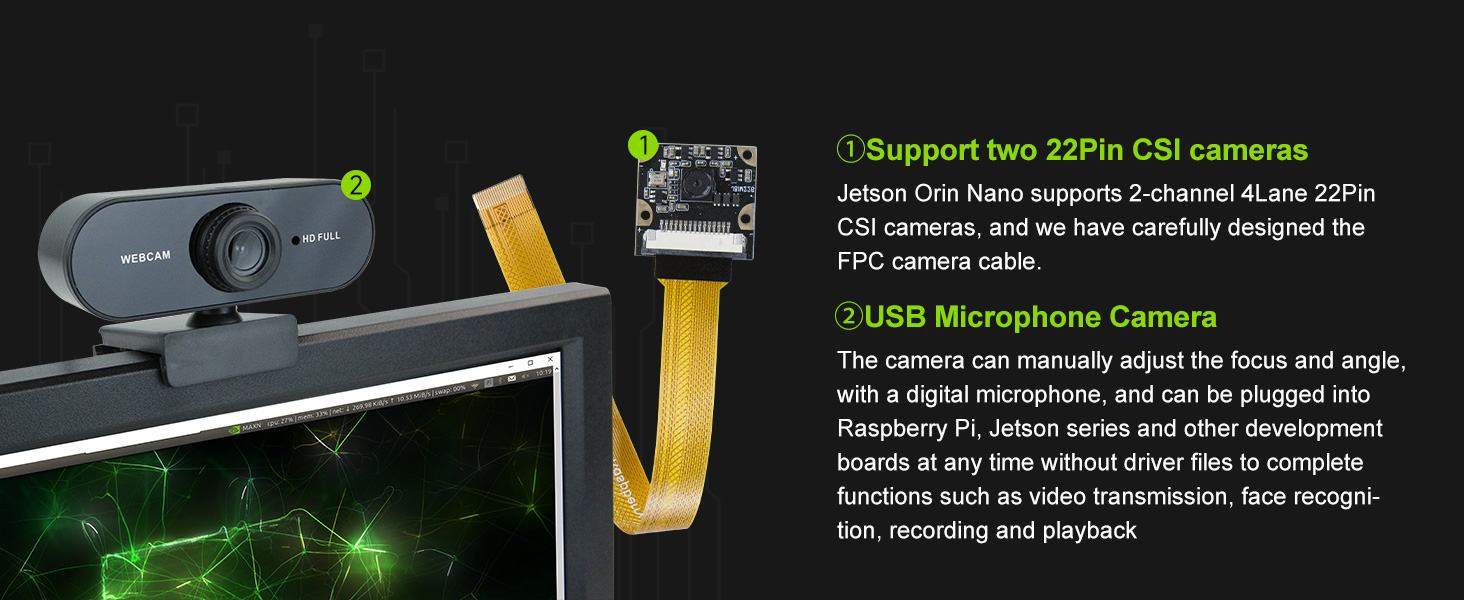

5 IMX219 77° Camera
AI high-performance computer
Development board series
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars
2
4.5 out of 5 stars
7
—
3.9 out of 5 stars
7
Price
$558.99$558.99
$1,058.99$1,058.99
$209.99$209.99
$215.99$215.99
Computing power
20/40TOPS
70/100TOPS
473GFLOPS
/
CPU
6-core Arm 64-bit CPU
8-core Arm 64-bit CPU
4-core ARM A57 1.43 GHZ
4-core Cortex-A76(ARM v8)
GPU
512 cores/1024 cores
1024 cores
128 cores Maxwell
800 MHz VideoCore Vll
RAM
4GB/8GB
8GB/16GB
4GB
4GB/8GB
Storage
256GB SSD
256GB SSD
16GB EMMC
Micro SD
The Jetson Orin NX module provides 8GB and 16GB memory options, with a computing power of up to 70 TOPS/100 TOPS, 3.5/5 times the performance of the previous generation, suitable for multiple concurrent AI reasoning pipelines, and it can also pass The high-speed interface connects multiple sensors, thus providing an ideal solution for new-age robotics.
The Jetson Orin NX module is extremely small, but the 16GB version delivers up to 100 TOPS of AI performance and is configurable from 10 watts to 25 watts. This module delivers up to 3x the performance of Jetson AGX Xavier and 5x the performance of Jetson Xavier NX.
Many AI applications face common needs: classification, object detection, language translation, text-to-speech, recommendation engine, sentiment analysis, etc. Pretrained models in the NGC catalog are performance-optimized and ready-to-tune with the NVIDIA TAO tool suite and customer datasets, saving time and cost in developing production-grade AI software.
NVI-DIA software platforms, including Isaac for robotics, Riva for AI voice and Metropolis for video analytics, accelerate development of industry-specific applications
【Packing list】Basic kit: Jetson Orin Nano SUB development board*1 (core module and carrier board installed, 4G or 8G optional), power adapter*1, antenna*2, wireless network card*1 (installed), 128G SSD*1, SSD radiator*1, DP to HDMI cable*1, Type-C cable*1, acrylic case*1, advanced kit: basic kit + IMX219-77° camera*1, camera case*1
