Price: $44.99
(as of Dec 25, 2024 17:59:52 UTC – Details)

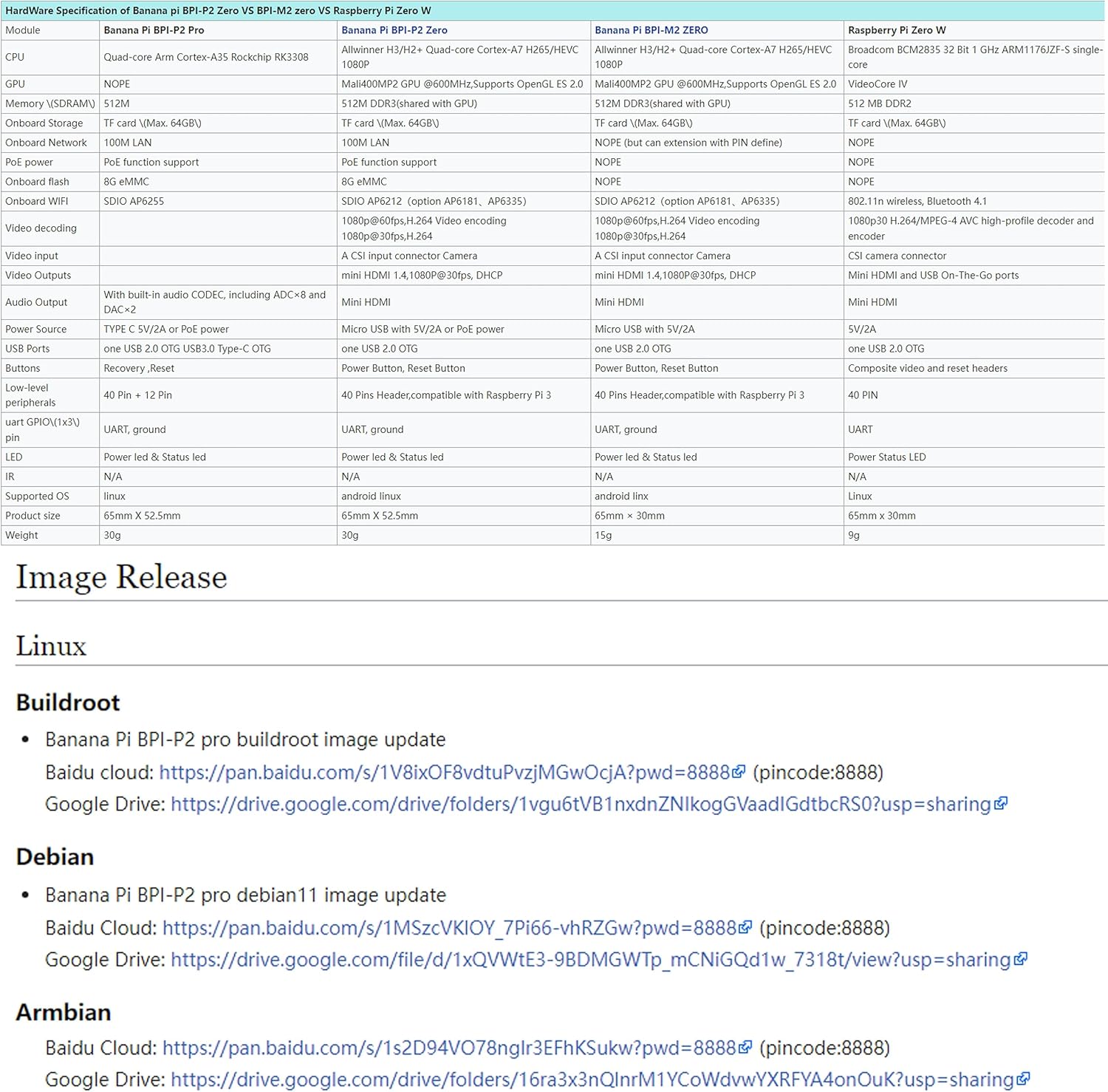

-Specification-
SOC: RockChip RK3308B-S
CPU: Quad-core ARM Cortex-A35
GPU: none
ROM: 512MB
RAM: 8GB eMMC
TF Card: TF card (Max 64GB)
Network: 100M LAN
PoE power: PoE function support，Output Voltage 5V, Output Power 10W
WiFi: AP6256
Audio Output: With built-in audio CODEC, including ADC×8 and DAC×2
Power Source: TYPE C 5V/2A or PoE power
USB: 1xUSB 2.0, 1xType-C
Others: Fan、RTC、LED、debug
Button: Power Button、Reset Button、 Recovery Button、Root Button
Low-level peripherals: 40 Pin + 12 Pin
UART GPIO(1×3) pin: UART, ground
LED: Power led & Status led
Product size: 65mm X 52.5mm
Weight: 30g

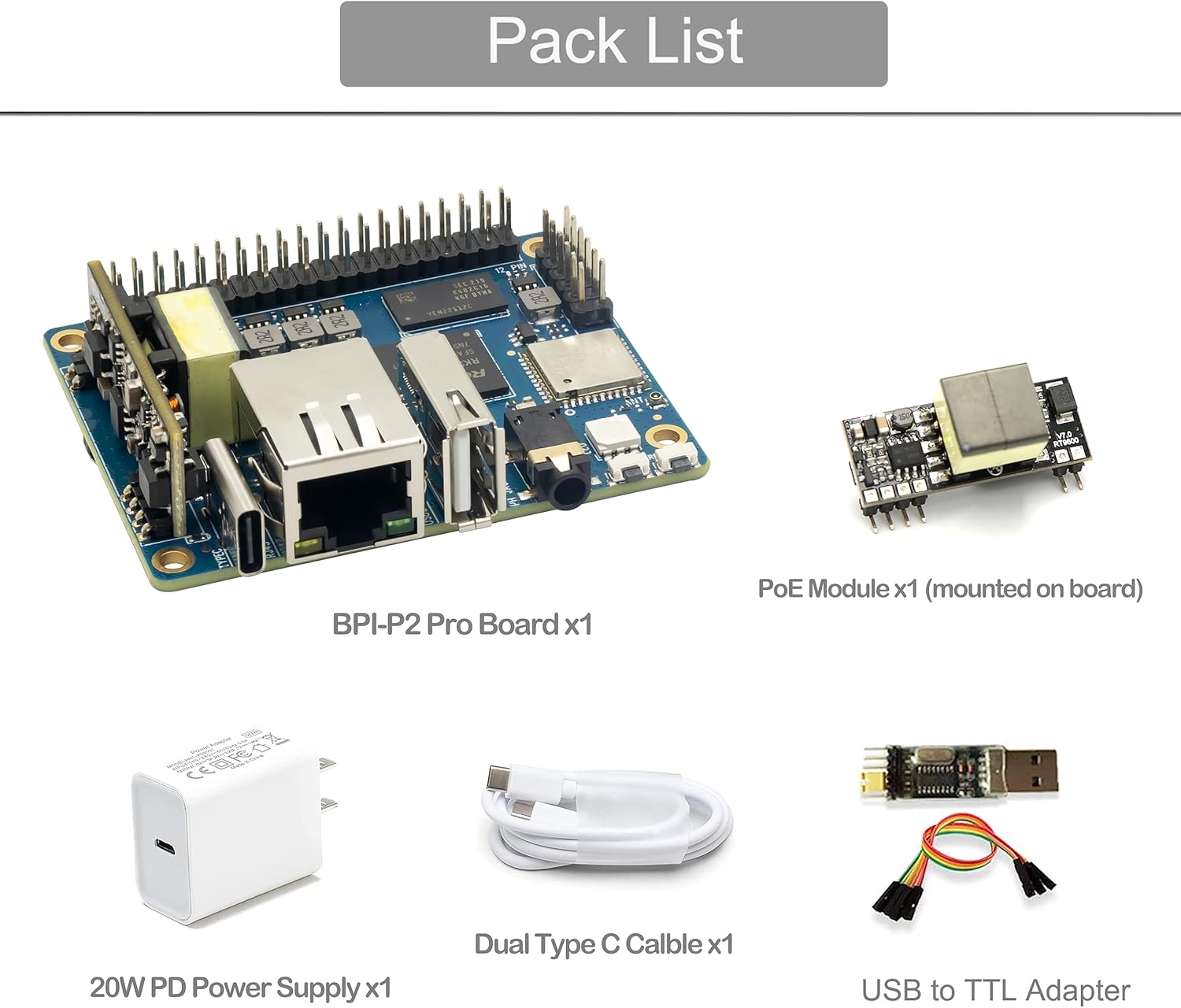

-Package Content-
BPI-P2 Pro Single Board Computer x1
PoE Power Supply Module x1
20W PD Power Supply SET x1
Debugger x1
Dupont Line x1
-Technical Support-
- Datesheet: “drive.google.com/file/d/1TsKFmItM1FJ-ziEvUkbcZxUsbaKYhsRq/view?usp=sharing”
- BPI-P2 PRO SCH, DXF, SMD file: “drive.google.com/drive/folders/1QC-3x8bdQePFz1z70rapNwB2Jlb5orvh?usp=sharing”
- Please click “WayPonDEV” and ask a question.
- Please leave the message “wpd#youyeetoo&com (#—>@,&—>.)” or skype: monica_9122.

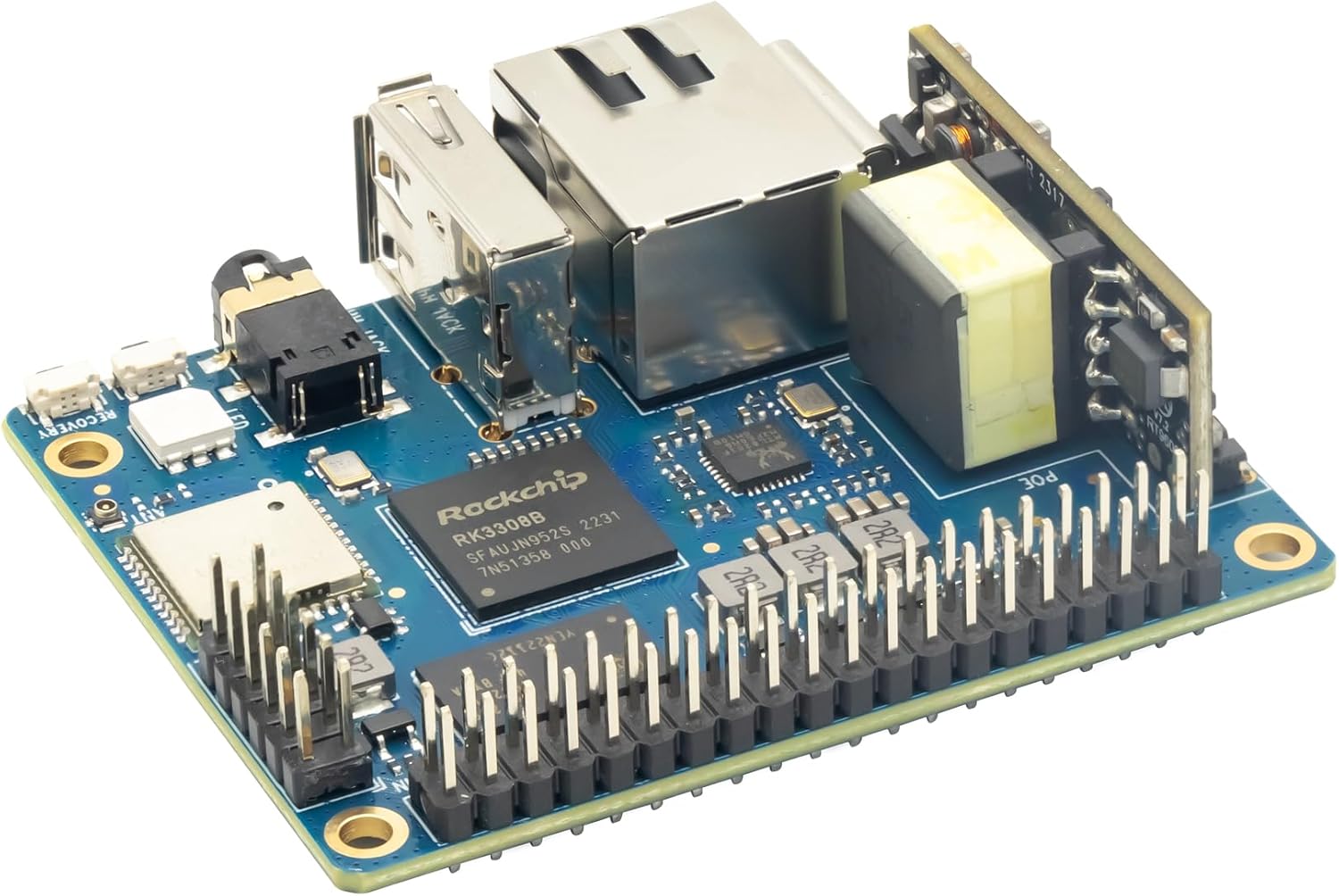

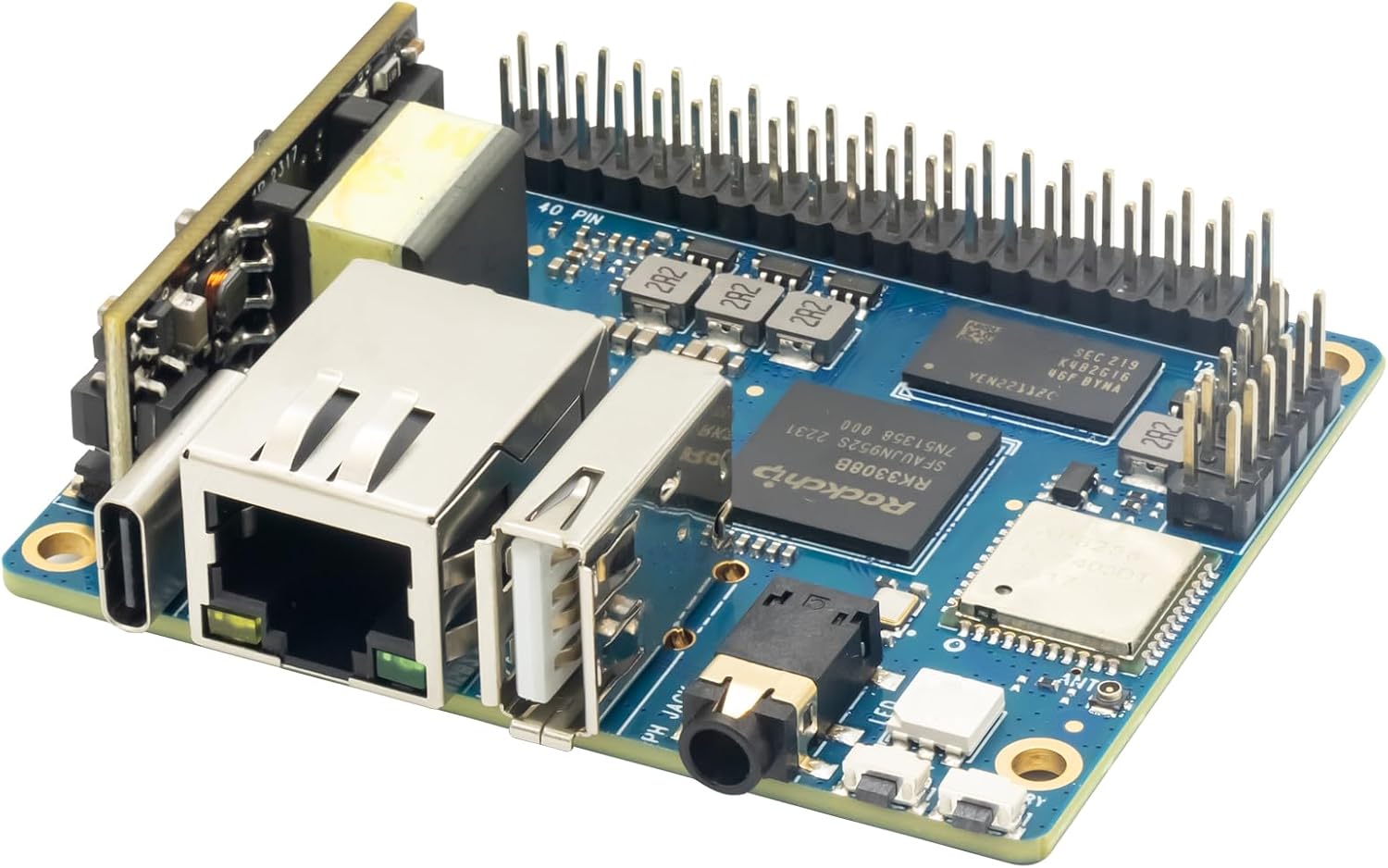

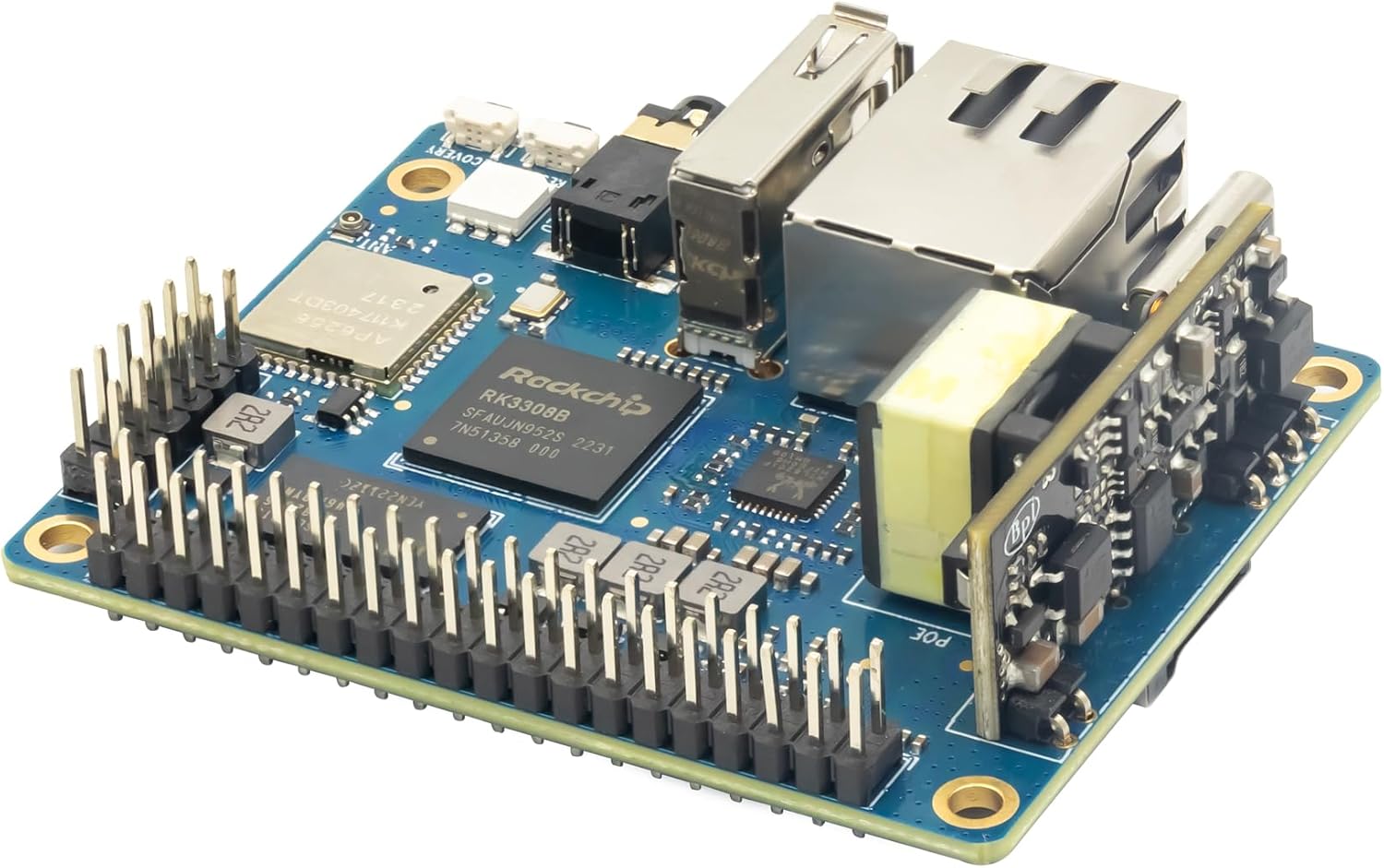

[High-performance SoC] BPI-P2 Pro is open source single board computer based on RK3308B-S chip with Quad-core ARM Cortex-A35 CPU, 64bit 512MB DDR3 SDRAM 8GB eMMC, onboard WiFi (AP6256) & BT, 40 PIN + 12 PIN GPIO and 100M LAN, support PoE function.
[Small Size, Rich interface] BPI-P2 Pro development board with 40 Pin+12 Pin GPIO support I2S, PCM, TDM, PDM, I2C, UART, SPDIF, HDMI ARC, etc. It can enable to meet the application of different products.Also with 1x 100M LAN port, 1xUSB 2.0, 1xType-C, 1x TF card Slot and 1x audio CODEC (ADC×8 and DAC×2).
[Widely Application] BPI-P2 Pro linux starter kit can be widely used to Maker DIY, IoT Smart Internet of Things, Intelligent speech recognition, Man-machine interface, Industrial control, Intelligent robot.
[Developed based on Linux] BPI-P2 Pro linux IoT development board support Buildroot, Debian, Armbian and u-boot OS. The linux-5.10.110 kernel BSP Source code on github: “github.com/ArmSoM/armsom-p2pro-bsp”
[Getting Started]” http://wiki.armsom.org/index.php/Getting_Started_with_ArmSoM-p2_pro”. Datesheet SDK download please click “WayPonDEV” store and ask the question. All after-sales questions, please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”.
