Price: $159.99 - $249.99
(as of Dec 14, 2024 04:09:16 UTC – Details)
Product Description
SOC Master Controller: RockChip RK3588
CPU: RK3588 Quad-Core Cortex-A76@ 2.4GHz+Quad-CoreCortex-A55@ 1.8GHz，8nm process
GPU: GPU Mali-G610 MP4 (4x256KB L2 Cache), Supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1
NPU: 6 TOPS@INT8(3 NPU core)
Supports INT4/INT8/INT16 mixed computing
Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc
VPU/Codec:
Hardware Decode: 8K@60fps H.265/VP9/AVS2、 8K@30fps H.264 AVC/MVC、 4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8
Hardware Encode: 8K@30fps H.265 / H.264
ISP: Integrated 48MP ISP with HDR&3DNR
RAM: 8GB/16GB/32GB（max 32GB ）64bit LPDDR4/LPDDR4x，default 8GB LPDDR4x
Flash: 32GB/64GB/128GB eMMC，default 64GB eMMC,Supports MicroSD card expansion
-Package Content-

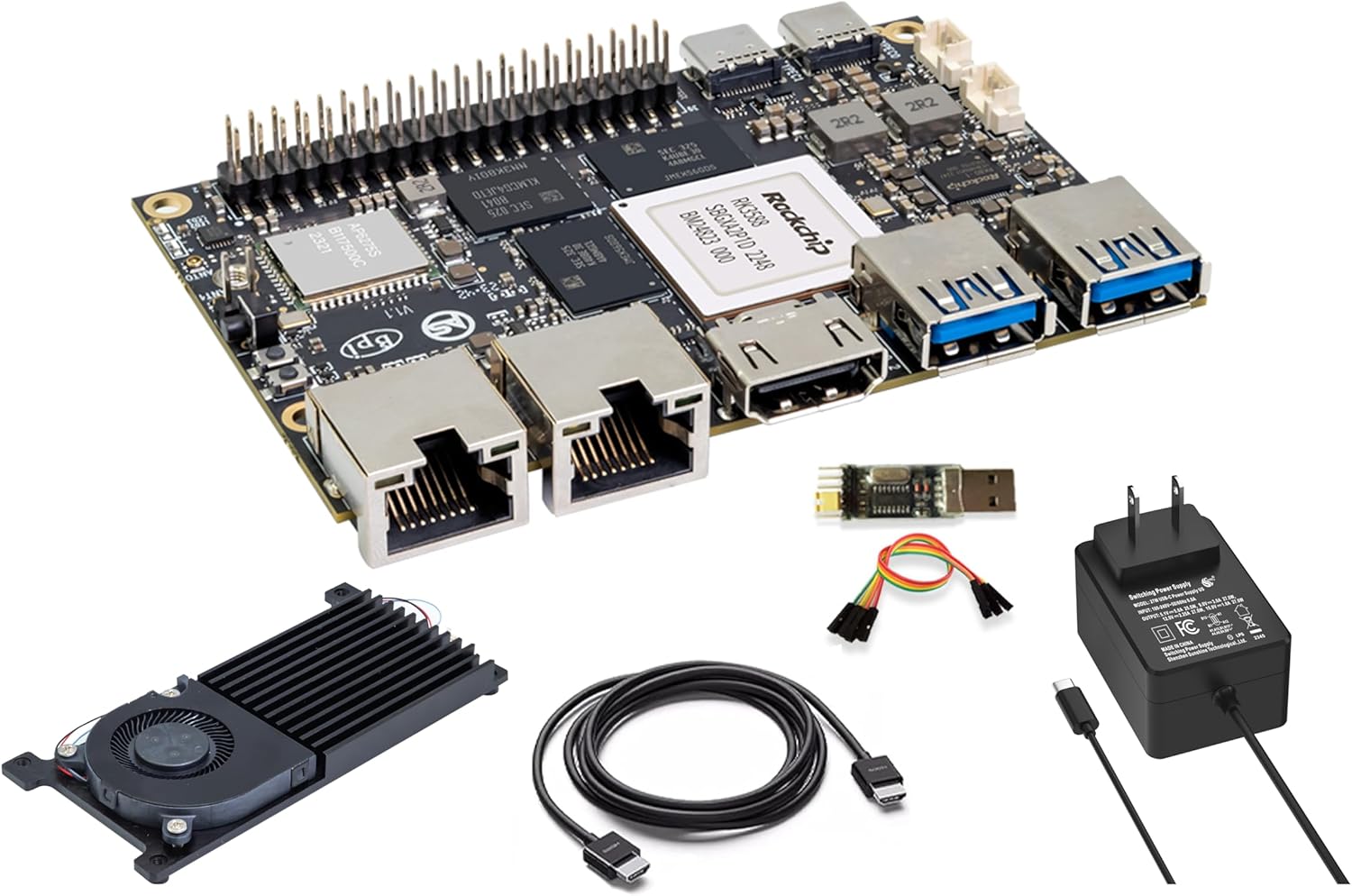

BPI-M7 Single Board Computer x1Heat Sink x4Serial Port x1Dupont Line x120W PD Power Supply x1
-OS Support-
Official: ：Android 12.0，Debian11，Buildroot3rd Party：Armbian，Ubuntu 20.04，Ubuntu22.04，Kylin OS
PCIe:
1x M.2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M.2 SSD cards, default 2280
Networking: 2x 2.5G Ethernet, Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P)
-Video Out
1x HDMI 2.1, supports 8K@60fps
1x MIPI DSI up to 4K@60fps
1x DP 1.4 up to 8K@30fps
-Video In
2x 2-lane MIPI CSI, up to 2.5Gbps per lane
-Audio
1x HDMI audio out
1x HP audio out
1x Type-C 3.1 (DP1.4) audio out
-USB
1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps
1x USB Type-C 3.1（DP1.4/OTG）
1x USB 2.0 High（480Mbps）/Full（12Mbps）/Low-Speed（1.5Mbps） modes
-40-pin
Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules
Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power
Other
1x 5V fan interface
1x battery connector for low power RTC chip HYM8563TS
2x LEDs – blue LED blinks on system start, red LED user controllable
Power Input
USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A
Buttons
1x PWRON button for sleep/wake,1x Reset button for reboot,1x Maskrom button for maskrom burn-in mode

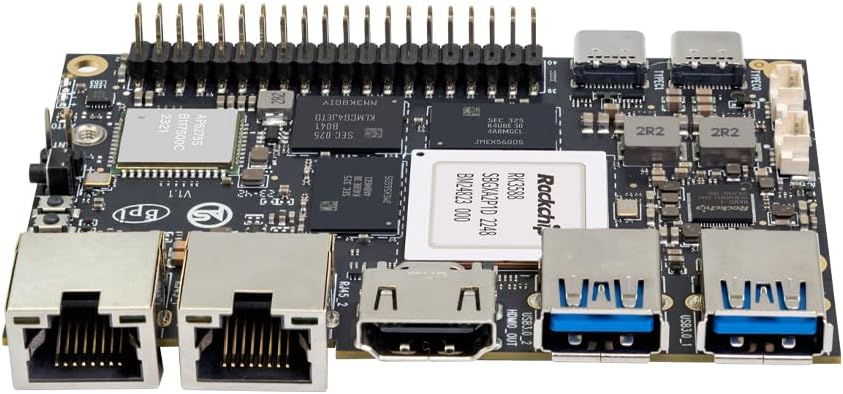

[High Performance RockChip RK3588 CPU] ] Banana Pi BPI-M7 single board computer adopt RK3588 Quad-Core Cortex-A76 2.4GHz and Quad-Core Cortex-A55 1.8GHz CPU, Imagination ARM Mali-G610 MP4 GPU (4x256KB L2 Cache), supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1. NPU (3 NPU core) for AI up to 6Tops, supports INT4/INT8/INT16 mixed computing.
[Greater Storage Scalability] Banana Pi BPI-M7 single board computer onboard 64bit 8/16/32GB LPDDR4x RAM and 64/128GB eMMC flash, onboard MicroSD slot and M.2 PCIe interface (PCIe 3.0 4-lanes), expansion support for 2280/2260/2242/2230 M.2 SSD cards, providing greater possibilities for AI edge computing and ARM computers development.
[Wide Range of Applications] Banana Pi BPI-M7 single board computer can be widely used in ARM computers, AI edge computing, Cloud Servers, Artificial intelligence, Cloud Computing, Virtual/Augmented Reality, Blockchain, Smart NVR, Smart Home Devices, Security Surveillance etc. It is also a smart SBC built specifically for applications such as smart displays, smart cameras, set-top boxes and media streaming.
[Triple Display Support with HDR] Banana Pi BPI-M7 integrated Mali-G610 MP4 (4x256KB L2 Cache) GPU, support 8K video decoding, codecing and 4K video output. 6Tops NPU, supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN. It can drive three displays, allowing the device to power a 1080P touchscreen panel in a set-top box while streaming to a 4K/8K TV, supports multiple video outputs.

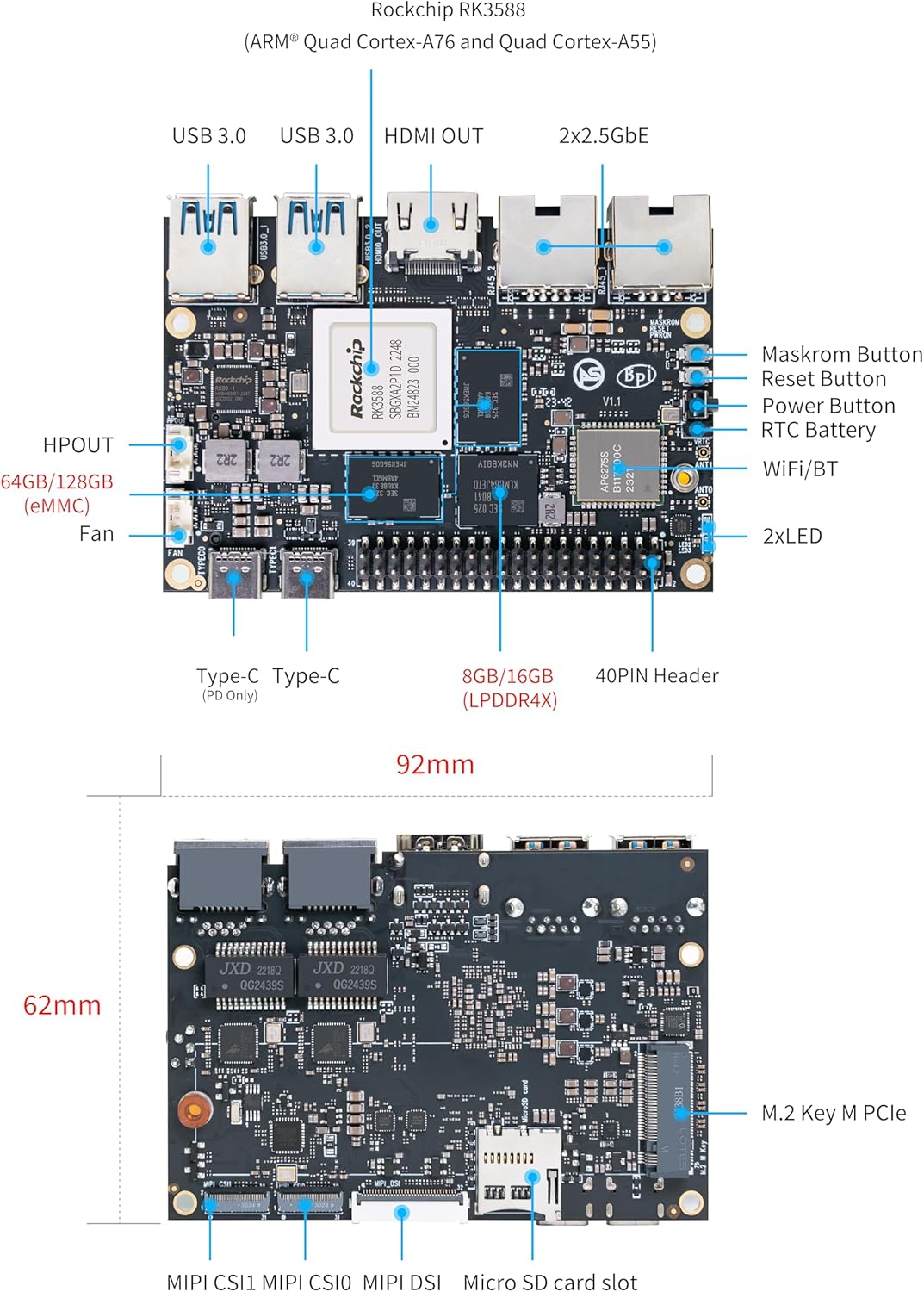

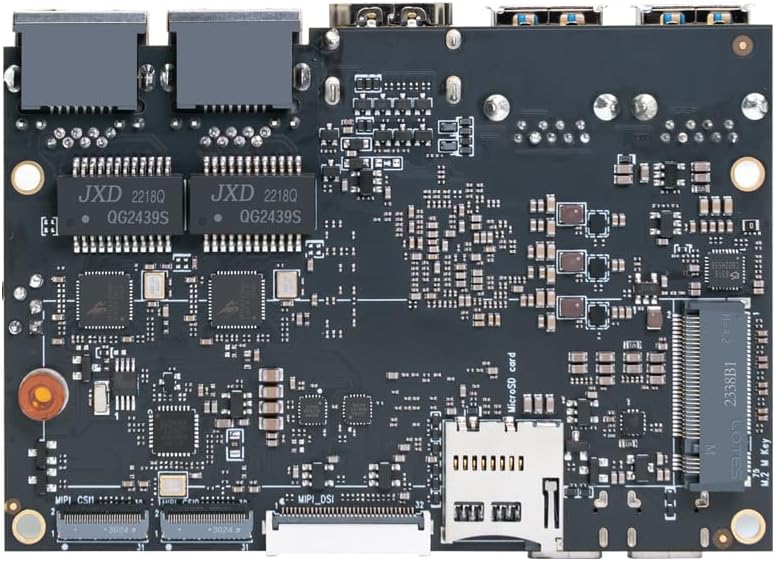

[Multifunction Interfaces] Banana Pi BPI-M7 linux single board computer onboard M.2 Key M port (PCIe 3.0 x4), 2x MIPI CSI and 1x MIPI DSI port, 2 x USB 3.0 ports; 2x 2.5GbE Gigabit Ethernet port; 1x HDMI out port; GPIO: 40-pin header, compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules. Support IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5. Size & Weight: 92 mm x 62mm x 10mm, 68g.
[SDK Document] Banana Pi BPI-M7 Open Source Linux Development Board supports multiple operating systems, Official：Android 12.0, Debian11, Buildroot. 3rd Party：Armbian, Ubuntu 20.04, Ubuntu22.04, Kylin OS. SDK download and Getting Started: “https://docs.banana-pi.org/en/BPI-M7/BananaPi_BPI-M7”.
[After-sales Service] All technical, after-sales and bulk orders questions, please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)” or please click “WayPonDEV” store and ask the question.
