Product Description
-Specification-
Banana Pi BPI-F3 SBC: Single Board Computer with High Performance RISC-V Architecture
The Banana Pi BPI-F3 is a compelling and innovative product in the field of open source hardware and embedded systems, designed for developers looking for high performance, low power consumption and high flexibility. Based on the RISC-V architecture and featuring the advanced Kendryte K1 processor, this single board computer (SBC) opens up new possibilities for edge computing, Internet of Things (IoT), and Artificial Intelligence (AI) applications, as well as education and research projects.
[Edge Computing and AI Reasoning] With its built-in NPU, the BPI-F3 shines in the field of Edge Computing for scenarios such as smart security, automation control, and object recognition.[Suitable for IoT Projects] Low power consumption and rich peripheral interfaces make it an ideal platform for IoT project development, whether for smart home or industrial automation.[Education and Research] As a teaching tool, the BPI-F3 provides an ideal platform for students and researchers to gain a deeper understanding of the RISC-V architecture and its applications in modern computing.[Personal and Portable Computing] Its small size and powerful performance allow it to be used as the basis for a lightweight laptop or NAS server for mobile office and private cloud storage needs.
———The Banana Pi BPI-F3 is not only an icon of RISC-V technology advancement, but also an important force in driving open source hardware innovation. Its release opens a new window to the future of computing for developers, educators, researchers, and even DIY enthusiasts to utilize its unique strengths and potential, whether in the areas of deep learning, IoT, or edge computing.
-Specification-
CPU：SpacemiT K1 8 core RISC-V chipAI：2.0Tops from RlSC-V CoreMemory：2/4 GB LPDDR4 (Supports up to 8G LPDDR4)Storage：8/16G eMMC flash. optional 4M SPI NOR,32M SPI NANDSD card：MicroSD card slot (Greater than 256MB)Wireless Network：2.4G/5G Dual Band WiFi and Bluetooth 4.2

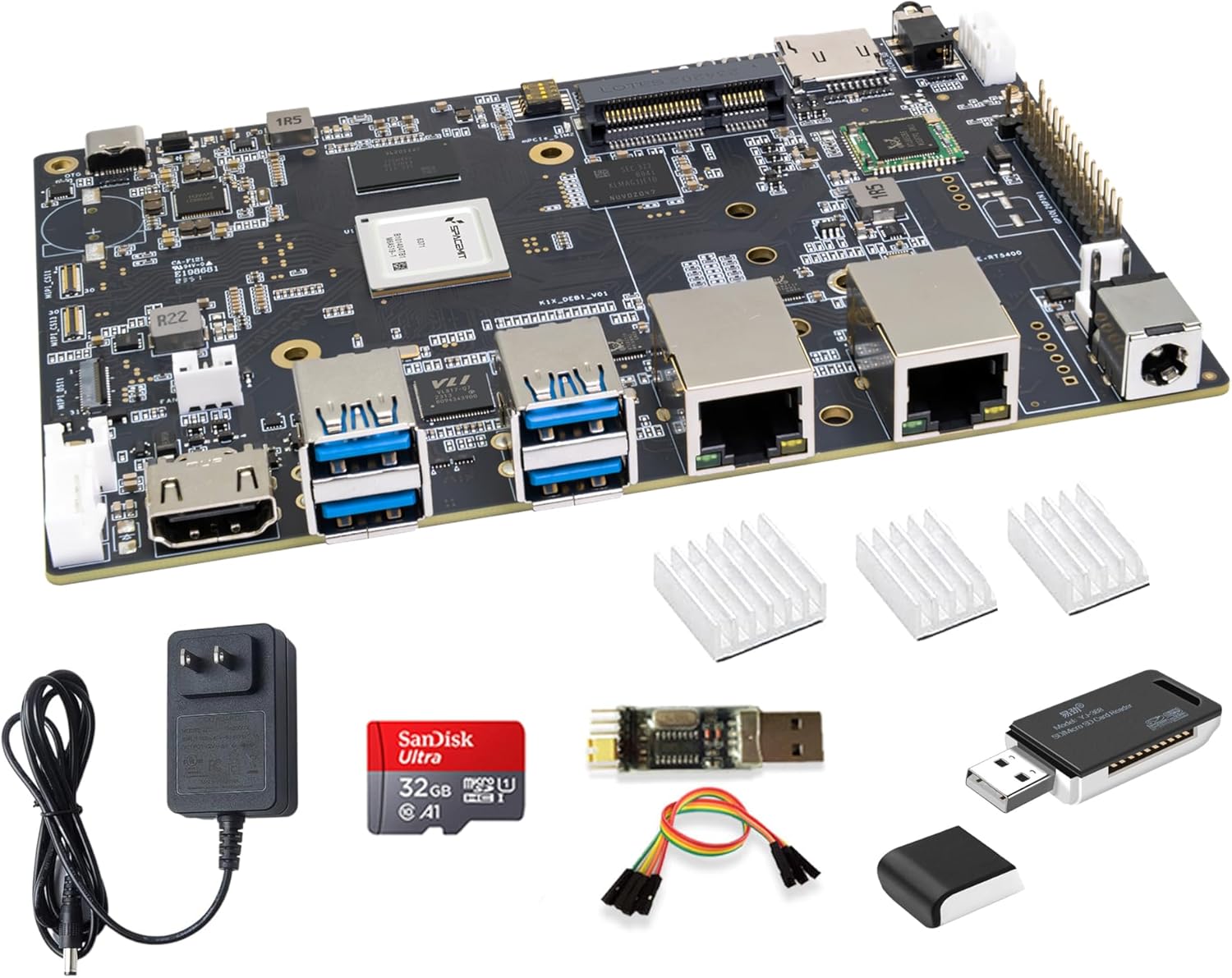

-Bundle2 Shipping List-
Banana Pi BPI-F3 SBC x112V 3A Power Supply x132GB TF card x1USB Card Reader x1USB to TTL Adapter x1Heat Sink x3
[Rich Hardware Resources]
Ethernet：2x GbE Ethernet port(supports PoE with add-on PoE HAT)
HDMI：1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps )
Audio：Speaker，Mic， Earphone
Camera：MIPI-CSI, Dual-shot support
USB：4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG
PCIe：PCIE2.1 2lane * 2
PCIEB 2lane connect M.2 KEY M( Support JMB582 expansion card to SATA )PCIEC 1lane connect MINI PCIE
GPIO：26-pin header
Buttons：Reset, Power and Burn
IR：IR-Rx
LED：Power Status
Power：DC in and TYPE-C in
Size：148×100 mm
Weight：200g
—KEY STONE K1 RISC-V AI CPU Features—
SpacemiT K1 is an eight-core 64-bit RISC-V AI CPU. Based on the RISC-V open instruction set architecture, we are committed to creating a more energy-saving and versatile AI processor platform and promoting the construction of global open source and open eco-logical computing capabilities. SpacemiT K1 Chip is mainly used in single board computers, network storage, cloud computers, intelligent robots, industrial control, edge computers, etc.
Excellent CPU Performance：
Octa-core RISC-V AI CPU,provided 50KDMIPS CPU computing power and 2.0 TOPS AI computing power.The computing power for single core in K1 is 30% ahead of ARM A55
Powerful Vector Computing Power：
The world’s first RISC-V AI CPU supports RVA22 Profile and 256-bit RVV 1.0 standard, provides 2 times SIMD parallel processing capability than Neon
General AI Computing Power：
Provides AI computing power by CPU core fusion,achieve rapid integration with all mainstream AI ecosystems.
More about K1 Chip—-“docs.banana-pi.org/en/BPI-F3/SpacemiT_K1”
Security Architecture
Supports RISC-V PMP security specifications and ePMP security extensions.Supports secure boot, secure storage, signature verifications.Supports algorithms like AES, SHA, RSA, SM2, SM3, SM4,etc.Supports product lifecycle security management.
Multimedia and Display
Supports 3D graphics engine,compatibility with OpenCL 3.0, OpenGLES 3.2, Vulkan 1.2Supports 4K H.265/H.264/VP9/VP8, and other encoding/decoding formats.* Dual-screen display support, with a maximum resolution of 1920*1440@60fps. -By MIPI-DSI,HDMI output.Supports triple camera inputs, with a single camera of up to 16MP.Supports stereo sound output.
Operation Systems
Bianbu OSLinux(Mainstream distribution versions)RTOS
[Fully Upgraded CPU Version] Banana Pi BPI-F3 RISC-V AI linux single baord computer is powered by SpacemiT 8-core RISC-V chip with integrated high-performance 2.0TOPs AI CPU, and the single-core general-purpose computing power is equivalent to 1.3 times of Cortex-A55. It supports 32-bit LPDDR4 2GB/4GB RAM, 8/16GB eMMC flash, 4M SPI NOR and 32M SPI NAD on board, and it also supports wireless dual-band 2.4G/5G WiFi and Bluetooth 4.2.
[SpacemiT K1 RISC-V CPU] Based on the RISC-V open instruction set architecture, it is an energy-saving and versatile AI processor platform that supports open source ecological computing capabilities. It provides 50KDMIPS CPU computing power and 2.0TOPS AI computing power. The computing power efficiency is 20% higher than ARM A55. It supports RVA22 Profile and 256bit RVV 1.0 standard RISC-V CPU, and integrates PCIe, USB, GMAC, SPI and other interfaces.
[Support 4K Video Display] Banana Pi BPI-F3 K1 RISC-V Single Board Computer delivering a seamless and immersive ultra-clear picture quality, our technology ensures stability, intricate details, and smoothness. It finds extensive applications in TV boxes, smart screen casting devices, and a wide range of other cutting-edge solutions.
[Rich Hardware Resources] Banana Pi BPI-F3 K1 RISC-V SBC onboard 2x GbE Ethernet ports (Supports PoE with add-on PoE HAT), 4x USB 3.0 and PCIe M.2 ports, 1x USB 2.0 Type-C OTG, HDMI and dual MIPI-CSI camera support, 1x MicroSD card slot, 5-channel PCIE2.1 expansion capability, 12x UART serial ports, 26-pin header GPIOs, DC in and TYPE-C in. Size: 148x100x15 mm, Weight: 200g.
[Wide Range of Applications] Banana Pi BPI-F3 K1 RISC-V AI SBC can be widely used in NAS Network Storage, Cloud Computers, Smart Robots, Laptops, Industrial Control, AI edge computers and so on. It can also be used as TV boxes, smart screen casting devices, supports 4K video decoding and encoding, Speaker, Mic and Earphone.
[Wiki] Getting Start: “https://docs.banana-pi.org/en/BPI-F3/BananaPi_BPI-F3”. Any after-Sales supporting, please ask a question and contact us by click “Waypondev” store or leave the message in our forum by “forum.youyeetoo .com/”.
