Product Description

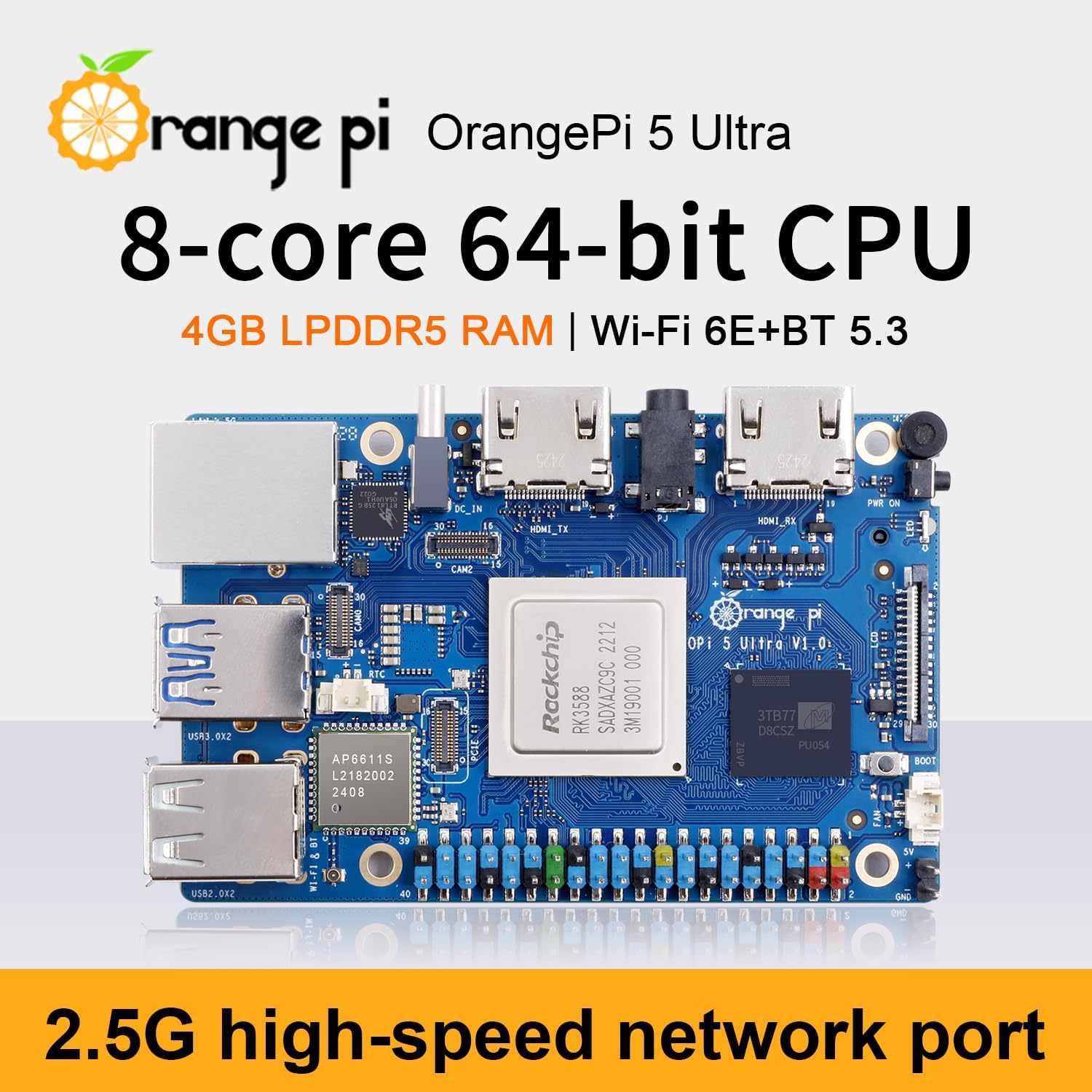

Orange Pi 5 Ultra Extremely Small Size, Extremely Powerful
Hardware Parameters
Master Chip Rockchip RK3588 (8nm LP process) CPU • 8-core 64-bit processor • 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor • Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz GPU • Integrated ARM Mali-G610 • Built-in 3D GPU • Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2. NPU Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS. PMU RK806-1 RAM LPDDR5 496PIN：4GB、8GB、16GB optional Memory Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional USB 2*USB3.0；2*USB2.0； Video • 2* HDMI 2.1, up to 8k@60FPS • 1* MIPI DSI TX 4 Lane Camera • 2* MIPI CSI 4 Lane • 1* MIPI D-PHY RX 4 Lane Ethernet 1*PCIe 2.5G LAN（RTL8125BG ) Wi-Fi+BT Module Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611 Button 1* BOOT key, 1 * On/Off key Power Source Supports Type-C power supply, 5V @ 5A FAN 5V 2PIN 1.25mm socket RTC 3V 2PIN 1.25mm socket
High Performance RK3588 – Orange Pi 5 Ultra 8GB uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2

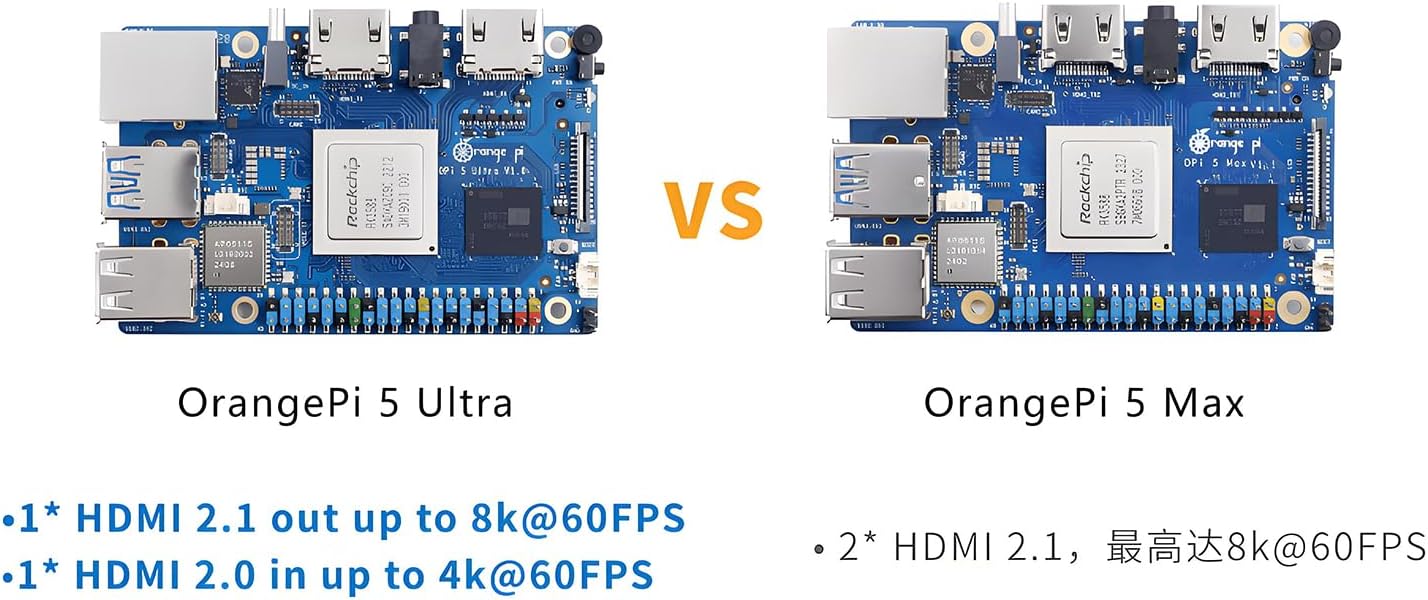

LPDDR5 8K Video Decoding – Orange pi 5 Ultra has 8GB LPDDR5, with up to 8K display processing capability, the powerful video codec allows for clearer images and more detailed picture quality, 1*HDMl 2.1 out up to 8k@60FPS & 1*HDMl 2.0 in up to 4k@60FPS, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision. supports eMMC socket and onboard eMMC (either one )
6TOPS High Computing Power – Orange Pi 5 Ultra 8G embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices, suitable for developing AI applications.
Wi-Fi 6E+BT 5.3 with BLE Support – Orange pi 5 Ultra has WiFi 6E + Bluetooth 5.3, supports BLE, stronger and more stable signals and easier and faster network transmission
Rich Ports – OrangePi 5 Ultra provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.
Wide Range of Application Scenarios – Orange Pi 5 Ultra is compact, PCB measuring only 89mmX57mmX1.6mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Ultra supports Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS (OH), Ubuntu, Debian, Android12 operating system.
Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.
