Price: $41.99
(as of Dec 04, 2024 11:38:24 UTC – Details)
Product Description

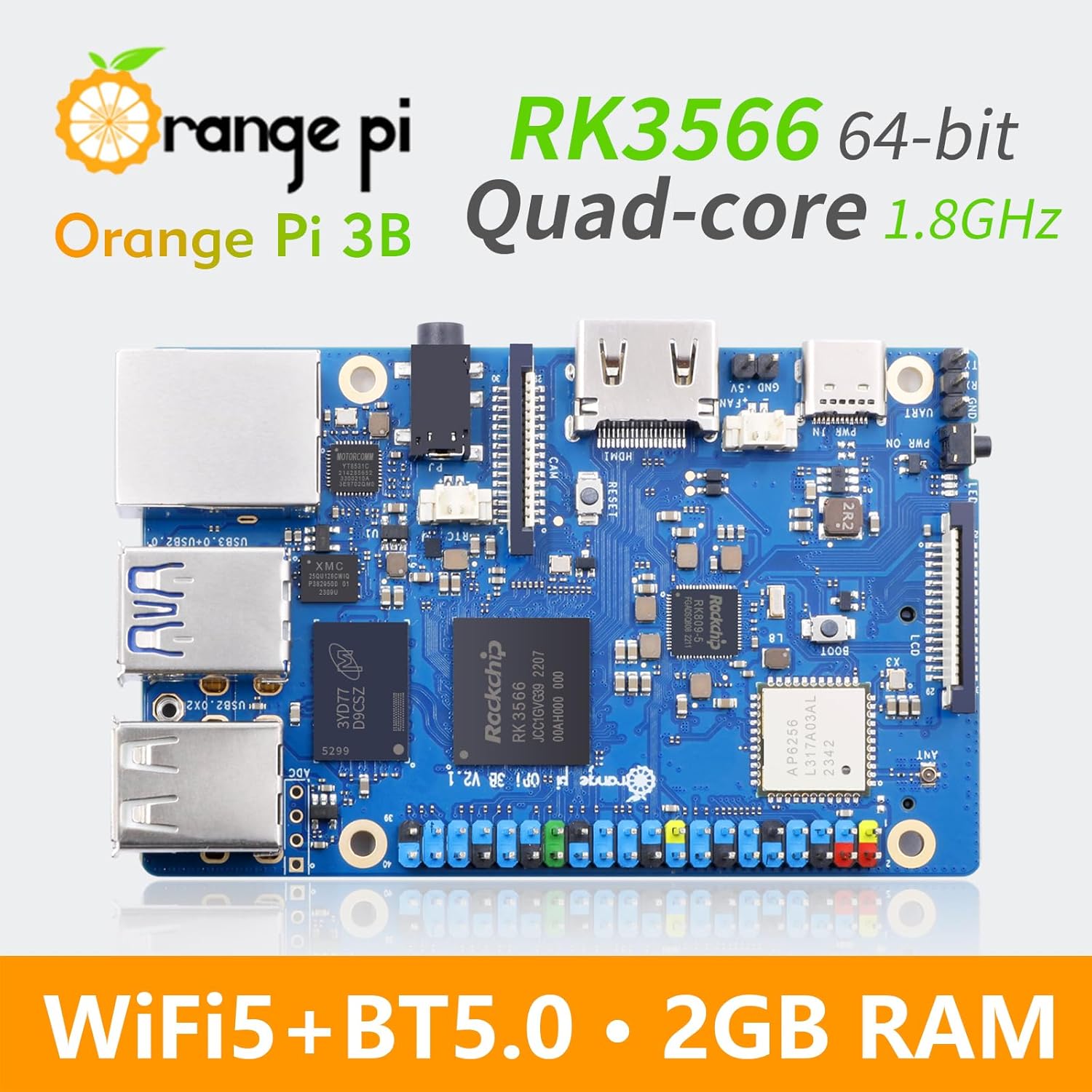

Orange Pi 3B
Rockchip RK3566 quad-core 64-bit processor2GB/4GB/8GB (LPDDR4/4X)With M.2 M-KEY interface supports access to SATA3 or PCIe 2.0 NVME SSD drivesSupport Wi-Fi 5 and Bluetooth 5.0
Orange Pi 3B Hardware Parameters
CPU Rockchip RK3566 Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz GPU • ARM Mali G52 2EE graphics processor • upport OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 • Embedded high performance 2D acceleration hardware NPU • Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance • Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models VPU • 4K@60fps H.265/H.264/VP9 video decoding • 1080P@100fps H.265 video encoding • 1080P@60fps H.264 video encoding PMU RockChip RK809-5 RAM 2GB/4GB/8GB （LPDDR4/4x） Memory • Support eMMC module:16GB/32GB/64GB/128GB/256GB • SPI Flash: 16MB/32MB • M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs • Micro SD slot Wi-Fi+BT Wi-Fi 5+BT 5.0，BLE（20U5622） Ethernet 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C) USB • 1*USB 2.0 support Device or HOST mode • 1*USB 3.0 HOST • 2*USB 2.0 HOST Audio 3.5mm headphone jack audio in/out FAN 2*Pin 1.25mm size 5V fan connector Power Source 5V3A Type-C Power Supply Supported OS Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems PCB Dimension 85mm x 56mm x 17mm Weight 49g
Up to 8GB of RAM for fast operation
With up to 8GB of memory capacity, large games and complex applications can run smoothly, meeting the requirements of large memory product application scenarios.
Gigabit Ethernet
On-board 1000Mbps Ethernet for stronger and more stable network connectivity and faster transmission.
Rich interfaces for easy expansion
Gathering all kinds of popular interfaces such as eDP, MIPI DSI, MIPI CSI, USB3.0, USB2.0, HDMI2.0, M.2 M-KEY（optional）, Gigabit Ethernet, etc., it can be applied to external device control and expansion.
🍊[High Performance]: Orange Pi 3B boasts a powerful Rockchip RK3566 quad-core 64-bit processor. It offers 2GB/4GB/8GB of high-performance memory and operates at a maximum frequency of 1.8GHz. Orange Pi 3B supports eMMC modules 16GB/32GB/64GB/128GB/256GB providing flexible storage options and features Wi-Fi 5 and Bluetooth 5.0 connectivity.
🍊[Rich Extensibility]: Orange Pi 3B offers a comprehensive range of options, including HDMI output, M.2 M-KEY, TF card slot, Gigabit LAN port, USB 2.0, USB 3.0, 3.5mm headphone jack, MIPI DSI port, eDP port, MIPI CSI camera port, and a multifunctional 40 Pin expansion port. Additionally, The M.2 M-KEY slot supports SATA 3 or PCIe 2.0 NVME SSD hard drives for large-capacity storage.
🍊[Support Open Source]: Orange Pi 3B supports Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.Orange Pi 3B make it suitable for various applications, such as TV boxes, high-end tablets, edge computing, face recognition, smart security, smart home, and more.
🍊[Genuine Guarantee and Official Authorized]: 👉Original guaranteed: Our products are all genuine , guaranteeing the highest quality.👉Quality guaranteed: Our all products that have undergone rigorous quality checks.👉Satisfaction guaranteed: Please contact us if you have any concerns about the product, we will do our best to offer satisfaction for all our customers.
Customers say
Customers like the power efficiency and performance of the single board computer. They mention it runs Ubuntu and Klipper like a champ. However, some customers have reported that the instructions for installing the boot system are complicated and there is little documentation for this device yet.
AI-generated from the text of customer reviews
